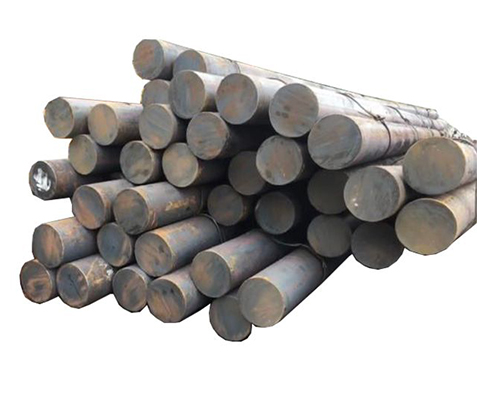

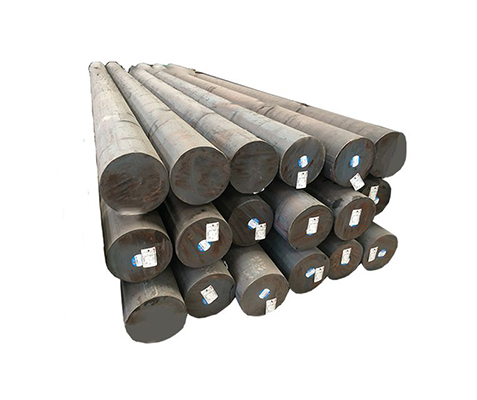

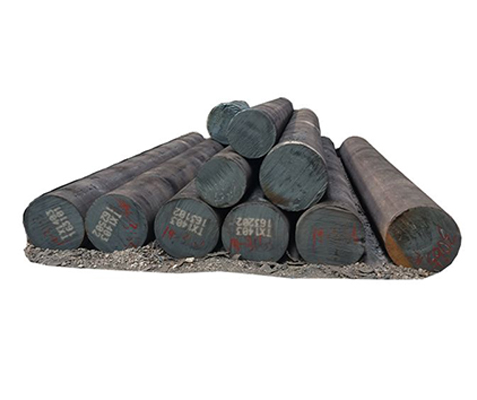

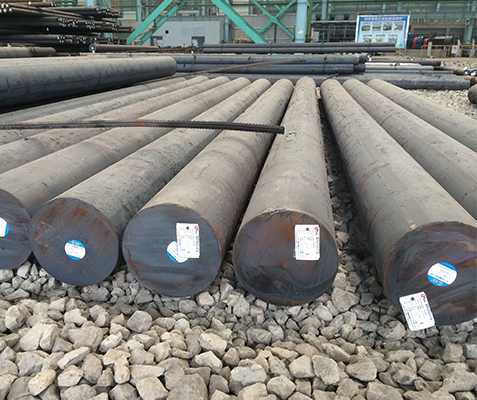

A105 гарм ғелонда пӯлоди панҷара мудаввар

A105 гарм ғелонда пӯлоди панҷара мудаввар

ASTM A105 (инчунин бо номи ASME SA 105 маълум аст) ҷузъҳои қубурҳои қалбакии пӯлоди карбонро барои истифода дар системаҳои фишор дар хидмати муҳити атроф ва ҳарорати баланд фаро мегирад.

Мушаххасоти	ASTM A105, ASME SA105
Андозаҳо	EN, DIN, JIS, ASTM, BS, ASME, AISI
Пӯлоди карбон A105 панҷара мудаввар	3,0 – 50,8 мм, Зиёда аз 50,8 – 300 мм
Пӯлоди карбон A105 панҷара росткунҷаест	6,35 x 12,7 мм, 6,35 x 25,4 мм, 12,7 x 25,4 мм
Пӯлоди карбон A105 панҷара шонздаҳӣ	AF5,8мм – 17мм
Пӯлоди карбон A105 панҷара мураббаъ	AF2мм – 14мм, AF6,35мм,9,5мм,12,7мм, 15,98мм,19,0мм, 25,4мм
Пӯлоди карбон A105 панҷараҳои ҳамвор	1/2 "то 10" дар доираи ғафсӣ аз 2мм то 150мм,
Анҷом	Дурахшон, полякӣ ва сиёҳ
Дарозӣ	1 то 6 метр, дарозии буридани фармоишӣ
Шакл	Давра, мураббаъ, шонздаҳӣ (A/F), росткунҷа, биллет, ингот, сохтакорӣ ва ғайра.

Карбон (максимум)	0.35
марганец*	0.60-1.05
Фосфор (максимум)	0.035
Сульфур (максимум)	0.040
Силикон	0.10-0.35
Мис (максимум)	0.40
Никел (максимум)	0.40
Chromium (максимум)	0.30
Молибден (максимум)	0.12
Ванадий (максимум)	0.08
Ниобий (максимум)	0.02

Қувваи кашиш (psi) min	70,000 psi
Қувваи ҳосилнокӣ (psi) min	36,000 psi
Дарозиш дар 2" (%) дақ	22%
Камшавии майдон (%) дақ	30%
Сахтии Бринел (BHN) макс	187

Андоза ДАР ДЮМ	ДАВР	МАЙДОН	Октагон	ШИНТАКОН	Андоза ДАР ДЮМ	ДАВР	МАЙДОН	Октагон	ШИНТАКОН
1/16	.010	.013	.011	.012	11/16	1.262	1.607	1.333	1.392
5/64	.017	.022	.018	.019	45/64	1.320	1.681	1.394	1.456
3/32	.023	.029	.024	.025	23/32	1.380	1.756	1.487	1.521
7/64	.031	.039	.033	.034	47/64	1.440	1.834	1.521	1.588
1/8	.042	.053	.044	.046	3/4	1.502	1.913	1.586	1.656
9/64	.053	.067	.056	.058	25/32	1.630	2.075	1.721	1.797
5/32	.065	.083	.069	.072	13/16	1.763	2.245	1.862	1.944
11/64	.079	.100	.083	.087	27/32	1.901	2.421	2.008	2.096
3/16	.094	.120	.099	.104	7/8	2.045	2.603	2.159	2.254
13/64	.110	.140	.116	.121	29/32	2.193	2.792	2.316	2.418
7/32	.128	.163	.135	.141	15/16	2.347	2.988	2.479	2.588
15/64	.147	.187	.155	.162	31/32	2.506	3.191	2.646	2.763
1/4	.167	.213	.176	.184	1	2.670	3.400	2.820	2.945
17/64	.188	.240	.199	.207	1-1/16	3.015	3.838	3.183	3.324
9/32	.211	.269	.223	.233	1-1/8	3.380	4.303	3.569	3.727
19/64	.235	.300	.248	.259	1-3/16	3.766	4.795	3.977	4.152
5/16	.261	.332	.275	.288	1-1/4	4.172	5.313	4.407	4.601
21/64	.288	.360	.304	.318	1-5/16	4.600	5.857	4.858	5.072
11/32	.316	.402	.334	.348	1-3/8	5.049	6.428	5.332	5.567
23/64	.345	.439	.364	.381	1-7/16	5.518	7.026	5.827	6.085
3/8	.376	.478	.397	.414	1-1/2	6.008	7.650	6.345	6.625
25/64	.408	.519	.431	.450	1-9/16	6.519	8.301	6.885	7.189
13/32	.441	.561	.466	.486	1-5/8	7.051	8.978	7.446	7.775
27/64	.475	.605	.502	.524	1-11/16	7.604	9.682	8.030	8.385
7/16	.511	.651	.540	.564	1-3/4	8.178	10.41	8.634	9.018
29/64	.548	.698	.579	.604	1-13/16	8.773	11.17	9.265	9.673
15/32	.587	.747	.620	.647	1-7/8	9.388	11.95	9.911	10.35
31/64	.627	.798	.662	.692	1-15/16	10.02	12.76	10.58	11.05
1/2	.668	.850	.705	.736	2	10.68	13.60	11.28	11.78
33/64	.710	.904	.750	.783	2-1/16	11.36	14.46	11.99	12.53
17/32	.754	.960	.796	.831	2-1/8	12.06	15.35	12.73	13.30
35/64	.799	1.017	.844	.881	2-3/16	12.78	16.27	13.49	14.09
9/16	.845	1.076	.892	.932	2-1/4	13.52	17.21	14.27	14.91
37/64	.893	1.136	.943	.985	2-5/16	14.28	18.18	15.08	15.75
19/32	.941	1.199	.994	1.038	2-3/8	15.06	19.18	15.91	16.61
39/64	.992	1.263	1.048	1.094	2-7/16	15.87	20.20	16.75	17.49
5/8	1.043	1.328	1.102	1.150	2-1/2	16.69	21.25	17.62	18.40
41/64	1.096	1.395	1.207	1.209	2-9/16	17.53	22.33	18.52	19.34
21/32	1.150	1.464	1.214	1.268	2-5/8	18.40	23.43	19.43	20.29
43/64	1.205	1.535	1.272	1.329	2-11/16	19.29	24.56	20.37	21.27

Андоза ДАР ДЮМ	ДАВР	МАЙДОН	Октагон	ШИНТАКОН	Андоза ДАР ДЮМ	ДАВР	МАЙДОН	Октагон
2-3/4	20.19	25.71	21.33	22.27	6	96.13	122.4	101.5
2-3/16	21.12	26.90	22.31	23.29	6-1/16	98.15	125.0	103.6
2-7/8	22.07	28.10	23.31	24.34	6-1/8	100.2	127.6	105.8
2-5/16	23.04	29.34	24.33	25.41	6-3/16	102.2	130.2	108.0
3	24.03	30.60	25.38	26.50	6-1/4	104.3	132.8	110.2
3-1/16	25.05	31.89	26.45	27.62	6-5/16	106.4	135.5	112.4
3-1/8	26.08	33.20	27.54	28.76	6-3/8	108.5	138.2	114.6
3-3/16	27.13	34.55	28.65	29.92	6-7/16	110.7	140.9	116.9
3-1/4	28.21	35.91	29.79		6-1/2	112.8	143.7	119.1
3-5/16	29.30	37.21	30.94		6-9/16	115.0	146.4	121.4
3-3/8	30.42	38.73	32.12		6-5/8	117.2	149.2	123.8
3-7/16	31.55	40.18	33.32		6-11/16	119.4	152.1	126.1
3-1/2	32.71	41.6	34.54		6-3/4	121.7	154.9	128.5
3-9/16	33.90	43.15	35.79		6-13/16	123.9	157.8	130.9
3-5/8	35.09	44.68	37.07		6-7/8	126.2	160.7	133.3
3-1/16	36.31	46.23	38.34		6-15/16	128.5	163.6	135.7
3-3/4	37.55	47.81	39.65		7	130.9	166.6	138.2
3-3/16	38.81	49.42	40.99		7-1/16	133.2	169.6	140.7
3-7/8	40.10	51.05	42.34		7-1/8	135.6	172.6	143.2
3-5/16	41.40	52.71	43.72		7-3/16	138.0	175.6	145.7
4	42.73	54.40	45.12		7-1/4	140.4	178.7	148.2
4-1/16	44.07	56.11	46.54		7-5/16	142.8	181.8	150.8
4-1/8	45.44	57.85	47.98		7-3/8	145.2	184.9	153.4
4-3/16	46.83	59.62	49.45		7-7/16	147.7	188.1	156.0
4-1/4	48.23	61.41	50.93		7-1/2	150.2	191.3	158.6
4-5/16	49.66	63.23	52.44		7-5/8	155.3	197.7	164.0
4-3/8	51.11	65.08	53.98		7-3/4	160.4	204.2	169.4
4-7/16	52.58	66.95	55.53		7-7/8	165.6	210.9	174.9
4-1/2	54.08	68.85	57.10		8	170.9	217.6	180.5
4-9/16	55.59	70.78	58.70		8-1/4	181.8	230.9	192.0
4-5/8	57.12	72.73	60.32		8-1/2	192.9	245.7	203.8
4-1/16	58.68	74.71	61.96		8-3/4	204.4	259.6	215.8
4-3/4	60.25	76.71	63.63		9	216.3	275.4	228.4
4-3/16	61.85	78.75	65.32		10	267.0	340.0	282.0
4-7/8	63.46	80.80	67.02		11	323.1	411.4	341.2
4-5/16	65.10	82.89	68.75		12	384.4	489.6	406.1
5	66.76	85.00	70.50		13	451	575	476
5-1/16	68.44	87.14	72.27		14	523	666	552
5-1/8	70.14	89.30	74.07		15	601	765	634

A105 гарм ғелонда пӯлоди панҷара мудаввар

Таркиби кимиёвии стандарти "A105 Grade"

Хусусиятҳои механикӣ барои "Синфи A105"

ASTM A105 Диаграммаи вазни бари қалбакӣ

Аризаи ASME SA105 Round Bar
