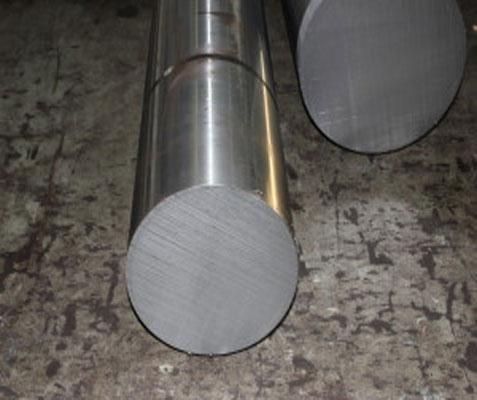

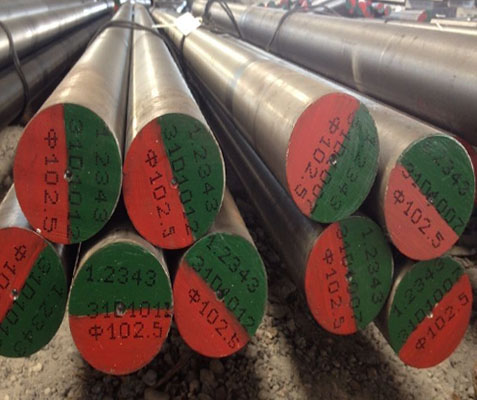

H-11 Tool Steel

H-11 tool steel is a type of chromium hot work steel that is commonly used for manufacturing hot-work dies and tools. It is known for its high resistance to thermal shock and excellent toughness. H-11 tool steel contains a combination of alloying elements, including chromium, molybdenum, and vanadium, which contribute to its high-temperature strength and wear resistance.

H-11 tool steel can be hardened by heat treatment and is often used in applications that require high strength, toughness, and resistance to thermal fatigue. It is commonly used in the manufacture of hot-work dies, extrusion dies, forging dies, and punches. H-11 tool steel can also be used for other applications, such as plastic injection molding, where high-temperature performance and wear resistance are important.

Chemical Composition of H11 Tool Steel Material

ASTM A681	C	Si	Mn	P	S	Cr	Mo	V
H11/T20811	0.33～0.43	0.80～1.20	0.20～0.50	0.030 Max	0.030 Max	4.75～5.50	1.10～1.60	0.30～0.60
DIN 17350	C	Si	Mn	P	S	Cr	Mo	V
1.2343/ X40CrMoV5-1	0.36～0.42	0.90～1.20	0.30～0.50	0.030 Max	0.030 Max	4.80～5.80	1.10～1.40	0.25～0.50
GB/T 1299	C	Si	Mn	P	S	Cr	Mo	V
4Cr5MoSiV	0.33～0.43	0.80～1.20	0.20～0.50	0.030 Max	0.030 Max	4.75～5.50	1.10～1.60	0.30～0.60
JIS G4404	C	Si	Mn	P	S	Cr	Mo	V
SKD6	0.32～0.42	0.80～1.20	≤0.50	0.030 Max	0.020 Max	4.50～5.50	1.00～1.50	0.30～0.50



H11 tool Steel Material Equivalent and Related Speciation

USA	German	Japan	China	ISO
ASTM A681	DIN 17350	JIS G4404	GB/T 1299	ISO 4957
H11	1.2343	SKD6	4Cr5MoSiV	35CrMoV5



ASTM AISI H13 Tool Steel Material Mechanical Properties

Tensile strength, ultimate (@20°C/68°F, varies with heat treatment): 1590 MPa
Tensile strength, yield (@20°C/68°F, varies with heat treatment): 1380 MPa
Reduction of area (@20°C/68°F): 50%
Modulus of elasticity (@20°C/68°F): 215 GPa


Application of Sae AISI H11 tool Steel

1, Application for Hot Extrusion Mold
As Dies, liners, Die holder Backers, Aluminium Extrusion mould, Copper alloy mold, stainless products mold Etc.

2, Application for Plastic Mold Tool
Like Large Injection molds compression, Thick wall plastic molds, Etc.
