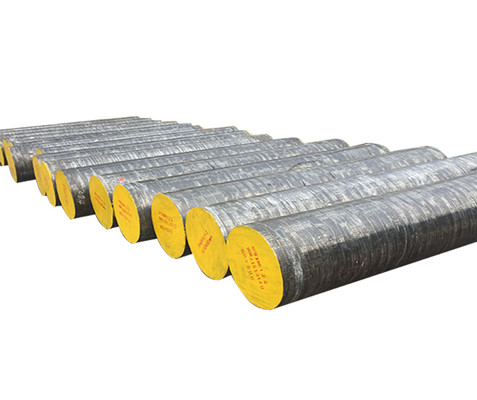

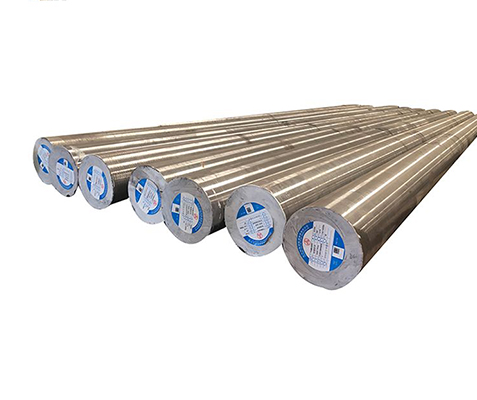

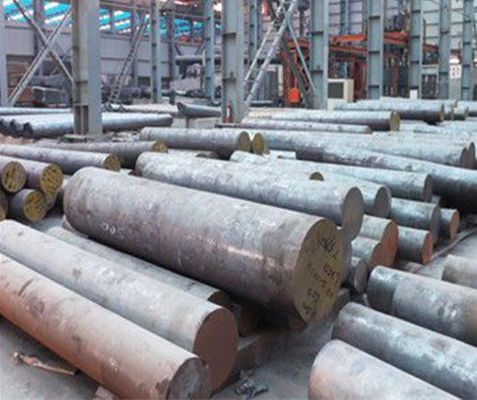

20MnCr5 hot rolled steel round bars

It is used in boxes, piston bolts, spindles, camshafts, gears, shafts and other mechanical controlling parts.

Send E-mail

Chat Now

Products list

Gnee steel,steel supply from sky to sea are available,global reachable;

Steel Pipe

Seamless Steel Pipe Alloy Steel Pipe Carbon Steel Pipe API Line Pipe Welded Steel Pipe Galvanized Steel Pipe Fittings

Stainless Steel

Stainless Steel Coil/Sheet Stainless Steel Pipe Fittings

Steel Plate

Weather Resistant Steel Boiler Pressure Vessel Steel Shipbuilding Steel Plate Wear Resistant Steel Plate Hight Strength Low Alloy Steel Carbon Steel Checkered Steel Plate Alloy Steel Plate

H Beam Angle Channel Steel Round Bars

Galvanized Steel

Galvanized Coil/Sheet Prepainted Steel Coil Corrugated Roofing Sheet

Aluminum Metal

Automotive Steel

Email : sale@gneesteel.com

Mobile: +86 15824687445 kelly

Tel: +86 372-5055135

Address: No. 4-1114,Beichen Building,Beicang Town,Beichen District Tianjin,China.

Product introduction Chemical and Mechanical

Product introduction

20MnCr5 steel is a low alloyed engineering case hardening steel for parts which require core tensile strength of 1000 – 1300 N/mm² and good wearing resistance. This steel is carburising steel used for components requiring high wear resistance surface, coupled with tough cores to resist shock loads and strength to give large service life.

A kind of alloy structural steel.

20mncr5 is a steel grade imported from Germany, which is equivalent to 20crmn steel in China. It is carburized steel and can also be used as quenched and tempered steel. It has good hardenability, small heat treatment deformation, good low temperature toughness, good machinability, but poor weldability. It can be used for carburizing parts and quenching and tempering parts with very large section and high load, such as gears, shafts, worm, sleeve, friction wheel, etc.

Steel Grade :16mncr5 16mncrs5 20mncr5 20mncrs5	Special Use: Mold steel
Standard : AiSi, ASTM, GB, DIN,JIS,bs	Surface:Polished bright,black surface,or subject to the clients' request
Place of Origin :China	Delivery condition:Hot Forged Or hot Rolled
Origin : Baosteel,Changcheng,Tisco and so on	Size:Customized
Type :Round bar	Length:Customers' Requirements
Technique :Hot forged	Application:Widely
Type :Alloy structure steel	Payments:T/T,L/C,Paypal,Western union
Supply Ability :5000000 Kilograms	Shipment time:7-25days
Processing Service :Cutting,polishing	Inspection:ISO,BV,SGS,MTC

Chemical and Mechanical

STEEL DESIGNATION		CHEMICAL COMPOSITION
SYMBOLIC	NUMERIC	C	Si max	Mn	P max	S	Cr	Mo	Ni	B
20MnCr5	1,7147	0,17 ÷ 0,22	0,40	1,10 ÷ 1,40	0,025	≤ 0,035	1,00 ÷ 1,30	-	-	-

MECHANICAL CHARACTERISTICS (UNI 7846)

STEEL QUALITY	BAR'S DIAMETER	TENSILE TESTING					IMPACT STRENGTH KCU min
	BAR'S DIAMETER	UNIFIED TENSILE STRENGTH R		DEVIATION FROM PROPORTIONALITY Rp 0,2 min		ELONGATION A min	IMPACT STRENGTH KCU min
	mm	N/mm2	kgf/mm2	N/mm2	kgf/mm2	%	J
20MnCr5	11 (30) (63)	1230÷1520 (930÷1230) (780÷1080)	125÷160 (95÷125) (80÷110)	930 (690) (540)	95 (70) (55)	7 (8) (9)	17,5 (20) (25)

FAQ

1,Could you send me a quotation?

Sure, Before the exactly quotation we need information followed.

1.Product material grand:

2.Quantity

3.The size range of your product

4.Your requirement,such as deal with the surface or any other requirements

2,Can you send me a sample?

Yes,and the sample is free,usually we will take 1~3 days to make the sample

3,What is your delivery time?

For stocks, we can send the goods to loading port within 7 days after receiving your deposit

For production period, it usually needs about 15days- 30 days after receiving the deposit

4,How about the shipping package?

Standard packing or as customer requirements

5,What are your advantages?

We can provide small and loose order purchase demand.If we have stocks for your demanded size, we can deliver within 48 hours.What's more,We have regular cooperation relationship with more than ten domestic large-scale first-line steel plants all year round.
