Product |
post-tensioned anchorages h beam c purlin and z purlin/Prime hot rolled mild steel h beam |
|
|
Size |
High(H) |
100mm-900mm |
|
Flange width(B) |
100mm-300mm |
|
|
Web thickness(t1) |
6mm-16mm |
|
|
Flange thickness(t2) |
8mm-28mm |
|
|
Length |
6-12m/pc or as your request |
|
|
Standard |
AISI, ASTM, BS, DIN, GB, JIS etc. |
|
|
Material |
SS400, Q 235B,S235JR,Q345B, S355JR etc. |
|
|
Technique |
Hot rolled & Welded |
|
|
Application |
1.Industrial structure of the steel structure bearing bracket. 2.Underground engineering steel pile and retaining structure. 3.Petrochemical and electric power and other industrial equipment structure 4.Large span steel bridge components 5.Ships, machinery manufacturing frame structure 6.The train, automobile, tractor beam bracket 7.Port of conveyor belt, high speed damper bracket |
|
|

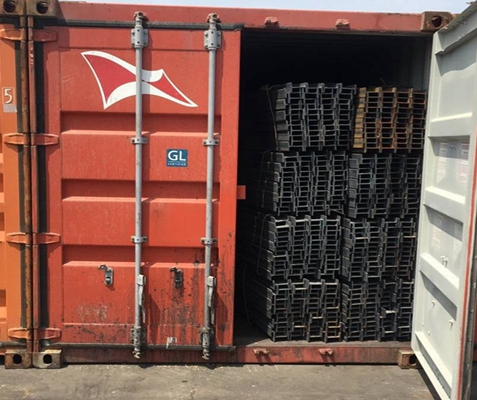

Package |
Standard seaworthy packing or as required |
|
|
Port of Shipment |
Tianjin Port, China |
|
|
Date of Delivery |
10-15 days after received the deposit |
|
|
MOQ |
10T |
|
|
Production |
5000t/ month |
|
|
Payment |
T/T, L/C, Western union etc. |
|
| Grade | Chemical Composition & Mechanical Properties | |||
| GB-Q235B Equal to JIS-SS400 or ASTM-A36 | Chemical Composition | |||
| C:0.12-0.20,Si:≤0.30,Mn:0.30-0.67,S:≤0.045,P: ≤0.04 | ||||
| Mechanical Properties | ||||
| Y.S.≥235 Mpa, T.S.:375-500 Mpa,El≥26% | ||||
| GB-Q345B Equal to JIS-SS490 or ASTM-A572 | Chemical Composition | |||
| C:≤0.20,Si:≤0.55,Mn:1.0-1.6,S:≤0.04,P: ≤0.04 | ||||
| Mechanical Properties | ||||
| Y.S.≥345 Mpa, T.S.:470-630 Mpa,El ≥22% | ||||
| SIZE (MM) | WEIGHT (KG/M) | SIZE (MM) | WEIGHT (KG/M) | |
| 100*100*6*8 | 17.2 | 388*402*15*15 | 141 | |
| 125*125*6.5*9 | 23.8 | 390*300*10*16 | 107 | |
| 148*100*6*9 | 21.4 | 394*398*11*18 | 147 | |
| 150*150*7*10 | 31.9 | 394*405*18*18 | 169 | |
| 150*75*5*7 | 14.3 | 396*199*7*11 | 56.7 | |
| 175*175*7.5*11 | 40.3 | 400*150*8*13 | 55.8 | |
| 175*90*5*8 | 18.2 | 400*200*8*13 | 66 | |
| 194*150*6*9 | 31.2 | 400*400*13*21 | 172 | |
| 198*99*4.5*7 | 18.5 | 400*408*21*21 | 197 | |
| 200*100*5.5*8 | 21.7 | 414*405*18*28 | 233 | |
| 200*200*8*12 | 50.5 | 428*407*20*35 | 284 | |
| 200*204*12*12 | 56.7 | 440*300*11*18 | 124 | |
| 244*175*7*11 | 44.1 | 446*199*8*12 | 66.7 | |
| 248*124*5*8 | 25.8 | 450*150*9*14 | 65.5 | |
| 250*125*6*9 | 29.7 | 450*200*9*14 | 76.5 | |
| 250*250*9*14 | 72.4 | 482*300*11*15 | 115 | |
| 250*255*14*14 | 82.2 | 488*300*11*18 | 129 | |
| 294*200*8*12 | 57.3 | 496*199*9*14 | 79.5 | |
| 294*302*12*12 | 85 | 500*200*10*16 | 89.6 | |
| 298*149*5.5*8 | 32.6 | 506*201*11*19 | 103 | |
| 300*150*6.5*9 | 37.3 | 582*300*12*17 | 137 | |
| 300*300*10*15 | 94.5 | 588*300*12*20 | 151 | |
| 300*305*15*15 | 106 | 594*302*14*23 | 175 | |
| 338*351*13*13 | 106 | 596*199*10*15 | 95.1 | |
| 340*250*9*14 | 79.7 | 600*200*11*17 | 106 | |
| 344*348*10*16 | 115 | 606*201*12*20 | 120 | |
| 344*354*16*16 | 131 | 692*300*13*20 | 166 | |
| 346*174*6*9 | 41.8 | 700*300*13*24 | 185 | |
| 350*175*7*11 | 50 | 792*300*14*22 | 191 | |
| 350*350*12*19 | 137 | 800*300*14*26 | 210 | |
| 350*357*19*19 | 156 | 900*300*16*28 | 243 | |
