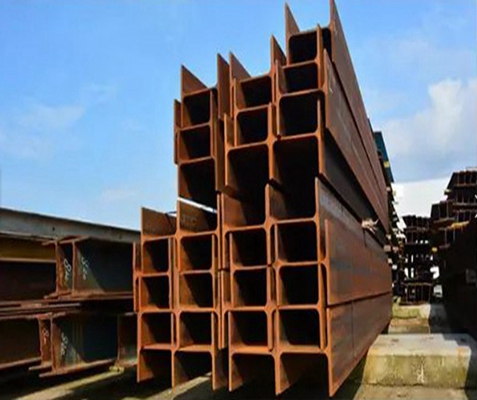

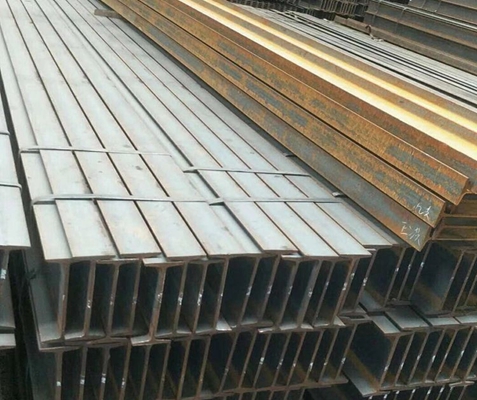

SM490 Steel H Beam

SM490 Steel H Beam,A wide variety of h beam steel sm490 options are available to you, You can choose from cutting, bending h beam steel sm490, as well as from q235b, ss400, and q235 h beam steel sm490, and whether h beam steel sm490 is hot rolled, or welded.

Send E-mail

Chat Now

Products list

Gnee steel,steel supply from sky to sea are available,global reachable;

Steel Pipe

Seamless Steel Pipe Alloy Steel Pipe Carbon Steel Pipe API Line Pipe Welded Steel Pipe Galvanized Steel Pipe Fittings

Stainless Steel

Stainless Steel Coil/Sheet Stainless Steel Pipe Fittings

Steel Plate

Weather Resistant Steel Boiler Pressure Vessel Steel Shipbuilding Steel Plate Wear Resistant Steel Plate Hight Strength Low Alloy Steel Carbon Steel Checkered Steel Plate Alloy Steel Plate

H Beam Angle Channel Steel Round Bars

Galvanized Steel

Galvanized Coil/Sheet Prepainted Steel Coil Corrugated Roofing Sheet

Aluminum Metal

Automotive Steel

Email : sale@gneesteel.com

Mobile: +86 15824687445 kelly

Tel: +86 372-5055135

Address: No. 4-1114,Beichen Building,Beicang Town,Beichen District Tianjin,China.

Product introduction Comparison Table

Product introduction

JIS G3106 SM490YA/YB H Beam is a kind of hot rolled steel. JIS G3106 SM490YA/YB H Beams has high ability to resist bending in all directions, its carrying capacity is strong, and the construction is simple, and it can save construction cost effectively.

Product	Prime SM490 Steel H Beam
Standard	ASTM,AISI,JIS,EN,DIN,GB, EN
Thickness Tolerance	±5%
Web Thickness	5-16mm
Web Width	60-900mm
Flange Thickness	7-28mm
Flange Width	50-300mm
Length	as your requirement
MOQ	5 tons
Technique	hot rolled /welded

Structural steel H beam H type beam (IPE,UPE,HEA,HEB)
JIS G3106 SM490 YA/YB H Beam chemical composition :

Standard	Grade	Method of Deoxidization	Chemical Components%
			C≤	Si≤	Mn≤	P≤	S≤	Nb≤	V≤	Ti≤	Als≥
			C≤	Si≤	Mn≤	P≤	S≤	Nb≤	V≤	Ti≤	Als≥
(Chinese Standard)	Q235B	Z	0.2	0.35	1.4	0.045	0.045
	Q345B	Z	0.2	0.5	1.7	0.035	0.035	0.07	0.2	0.2
	Q420B	Z	0.2	0.5	1.7	0.035	0.035	0.07	0.2	0.2
	Q420C	Z	0.2	0.5	1.7	0.03	0.03	0.07	0.2	0.2	0.015
	Q460C	Z	0.2	0.6	1.8	0.03	0.03	0.11	0.2	0.2	0.015
JIS Standard	SS400	Z				0.05	0.05
JIS Standard	SS540	Z			1.6	0.04	0.04
EN Standard	S235JR	Z	0.17		1.4	0.035	0.035
	S235JO	Z	0.17		1.4	0.03	0.03
	S235J2	Z	0.17		1.4	0.025	0.025
	S275JR	Z	0.21		1.5	0.035	0.035
	S275JO	Z	0.18		1.5	0.03	0.03
	S275J2	Z	0.18		1.5	0.025	0.025
	S355JR	Z	0.24	0.55	1.6	0.035	0.035
	S355JO	Z	0.2	0.55	1.6	0.03	0.03
	S355J2	Z	0.2	0.55	1.6	0.025	0.025
(ASTM Standard)	A36	Z	0.25	0.4		0.04	0.05
	A572-50	Z	0.23	0.4	1.35	0.4	0.05	0.05	0.15	0.15
	A572-60	Z	0.26	0.4	1.3	0.04	0.05	0.05	0.15	0.15
shipbuilding	A	Z	0.21	0.5	≥2.5C	0.035	0.035
shipbuilding	B	Z	0.21	0.35	0.8~1.2	0.035	0.035

Standard	Grade	Mechanical Property
		(N/MM2) Tensile Strength	(N/MM2) Yield Strength		Percentage Elongation after Fracture	Impact Power
		(N/MM2) Tensile Strength	≤16	16~40	Percentage Elongation after Fracture	20℃	0℃	-20℃
(Chinese Standard)	Q235B	370-500	≥235	≥225	≥26	≥27
	Q345B	470-630	≥345	≥325	≥21	≥34
	Q420B	520-680	≥420	≥400	≥18	≥34
	Q420C	520-680	≥420	≥400	≥19		≥34
	Q460C	550-720	≥460	≥440	≥17		≥34
JIS Standard	SS400	400-510	≥245	≥235	≥23
JIS Standard	SS540	≥540	≥400	≥390	≥17
EN Standard	S235JR	360-510	≥235	≥225	≥26	≥27
	S235JO	360-510	≥235	≥225	≥26		≥27
	S235J2	360-510	≥235	≥225	≥24			≥27
	S275JR	410-560	≥275	≥265	≥23	≥27
	S275JO	410-560	≥275	≥265	≥23		≥27
	S275J2	410-560	≥275	≥265	≥21			≥27
	S355JR	470-630	≥355	≥345	≥22
	S355JO	470-630	≥355	≥345	≥22
	S355J2	470-630	≥355	≥345	≥22
(ASTM Standard)	A36	400-550	≥250	≥250	≥23
	A572-50	≥450	≥345	≥345	≥21
	A572-60	≥520	≥415	≥415	≥18
shipbuilding	A	400-520	≥235	≥235	≥22
shipbuilding	B	400-520	≥235	≥235	≥22		≥27

Comparison Table

Nominal Size(mm)	H×B (mm)	T1(mm)	T2(mm)	JIS Weight (kg/m)	GB Weight (kg/m)	Available Length
100×100	100×100	6	8	16.9	17.2	6-16m
120×120	125×125	6.5	9	23.6	23.8	6-16m
150×75	150×75	5	7	14	14.3	6-16m
150×100	148×100	6	9	20.7	21.4	6-16m
150×150	150×150	7	10	31.1	31.9	6-16m
175×90	175×90	5	8	18	18.2	6-16m
175×175	175×175	7.5	11	40.4	40.4	6-16m
194×150	194×150	6	9	29.9	31.2	6-16m
200×100	198×99	4.5	7	17.8	18.5	6-16m
	200×100	5.5	8	20.9	21.7	6-16m
200×200	200×200	8	12	49.9	50.5	6-16m
200×200	200×204	12	12	56.2	56.7	6-16m
250×125	248×124	5	8	25.1	25.8	6-16m
250×125	250×125	6	9	29	29.7	6-16m
250×175	244×175	7	11	43.6	44.1	6-16m
300×150	298×149	5.5	8	32	32.6	6-16m
300×150	300×150	6.5	9	36.7	37.3	6-16m
300×200	294×200	8	12	55.8	57.3	6-16m
300×200	298×201	9	14	65.4		6-16m
350×175	346×174	6	9	41.2	41.8	6-16m
350×175	350×175	7	11	49.4	50	6-16m
400×200	396×199	7	11	56.1	56.7	6-16m
400×200	400×200	8	13	65.4	66	6-16m
250×250	250×250	9	14	71.8	72.4	6-16m
250×250	250×255	14	14	81.6	82.2	6-16m
300×300	300×300	10	15	93	94.5	6-16m
	294×302	12	12	83.4	85	6-16m
	300×305	15	15	105	106	6-16m
350×350	344×348	10	16	113	115	6-16m
350×350	350×350	12	1	135	137	6-16m
400×400	388×402	15	15	140	141	6-16m
	394×398	11	18	147	147	6-16m
	400×400	13	21	172	172	6-16m
	400×408	21	21	197	197	6-16m
	414×405	18	28	232	233	6-16m
	428×407	20	35	283	284	6-16m
350×250	340×250	9	14	78.1	79.7	6-16m
400×300	390×300	10	16	105	107	6-16m
450×300	440×300	11	18	121	124	6-16m
450×200	446×199	8	12	65.1	66.7	6-16m
450×200	450×200	9	14	74.9	76.5	6-16m
500×300	482×300	11	15	111	115	6-16m
500×300	488×300	11	18	125	129	6-16m
500×200	496×199	9	14	77.9	79.5	6-16m
	500×200	10	16	88.2	89.6	6-16m
	506×201	11	19	102	103	6-16m
600×200	600×200	11	17	103.4	106	6-16m
	596×199	10	15	92.4	95.1	6-16m
	606×201	12	20	118	120	6-16m
600×300	582×300	12	17	133	137	6-16m
	588×300	12	20	147	151	6-16m
	594×302	14	23	170	175	6-16m
700×300	692×300	13	20	163	166	6-16m
700×300	700×300	13	24	182	185	6-16m
800×300	800×300	14	26	207	210	6-16m
800×300	808×302	16	30	241		6-16m
900×300	890×299	15	23	210	213	6-16m
	900×300	16	28	240	243	6-16m
	912×302	18	34	283	286	6-16m
