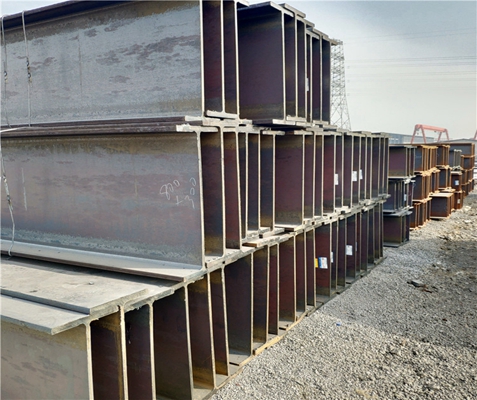

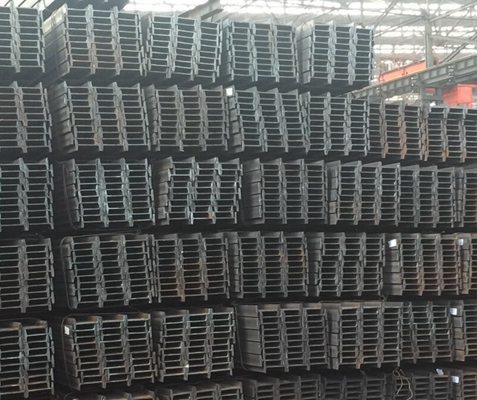

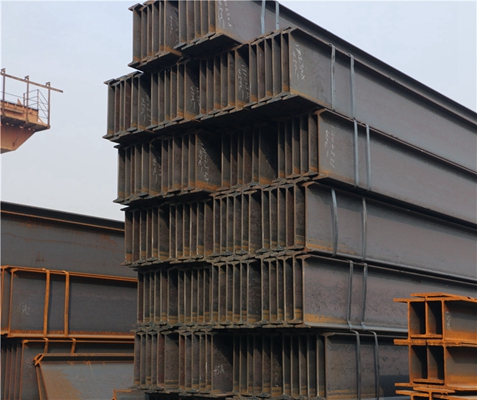

Q345B steel I beam for building and construction

Steel H beam is a new type of economic construction steel. Economic and reasonable h-beam section shape, good mechanical performance, rolling section on each extension point is relatively uniform, small internal stress, compared with ordinary beams, with large section modulus, light weight, save metals etc.. mainlyused for large buildings that big cutting ability, good cross section stability (such as factories, high-rise building, etc.), and Bridges, ships, lifting transportation machinery, equipment foundation, support, foundation pile, etc

1. Steel material: Q235B, SS400, A36, ST37-2, S235JR, S275JR Q345B, etc.

2. Theoretical Weight: 17.2-283kg/m
3. Standard: ASTM A6: A36, A572GR50, A992,
EN/BS10025: S275JR/J0/J2, S355JR/J0/J2, S355NL, S355ML, S355G11
JIS: SS400/SN400/SM490
AS/NZS 11263: G250, G350
4. Technique: Hot rolled
5. Surface Treatment: A, Bared   B, Black painted (varnish coating)   C,Galvanized  D, With oiled-covered

Features and Advantages of H beam
A,If bear the same press, then the H Beam can save 10%-15% material.
B,You can have more designs of the rooms if you use H Beam than concrete.
C,H Beam is light than the concrete, so it is easy to carry and cut the cost.
D,The Building will be more stable, if it is built by H Beam, especially the places where earthquake usually happened.
E,The H Beam is environmentally friendly and reduce the Nuisance dusts.
F,The H Beam can save the real working time, because it is easy to carry and can be used in any weather.

Applications of H beam
A, H Beams can be used in the industry and construction.
B, H Beams also can be used in the large Bridge.
C, The industries of trains, automobiles and tractors also will use the H Beam.
D, Frame Structure in marine and mechanical area.



Product Paramenters

Product Name	high quality small steel i beam i-beam (200x75)mm sizes
Technology	Hot rolled
Type	I-beam
Material	Q235/Q235B/Q345/Q345B/SS400
Thickness	4.5mm-15mm
Length	600-1200mm
service	Support customization
Standard	ASTM;AiSi;bs;DIN;GB;JIS
Application	Architecture and engineering structures.
Packing method	Rebar binding or according to customer's requirement.

Model	Leg height	Waist thickness	weight（kg）	Model	Leg height	Waist thickness	weight（kg）
10#	68	4.5	11.261	30A#	126	9	48.084
12#	74	5	13.987	30B#	128	11	52.794
14#	80	5.5	16.89	32A#	130	9.5	52.504
16#	88	6	20.513	32B#	132	11.5	57.741
18#	94	6.5	24.143	36A#	136	10	60.037
20A#	100	7	27.929	40A#	142	10	67.598
20B#	102	9	31.069	40B#	144	12.5	73.878
22A#	110	7.5	33.07	45A#	150	11.5	80.42
22B#	112	9.5	36.524	45B#	152	13.5	87.485
25A#	116	8	38.105	56A#	166	12.5	106.316
25B#	118	10	42.03	56B#	168	14.5	115.108
28A#	122	8.5	43.492	63A#	176	13	121.407
28B#	124	10.5	47.888	63B#	178	15	131.298
