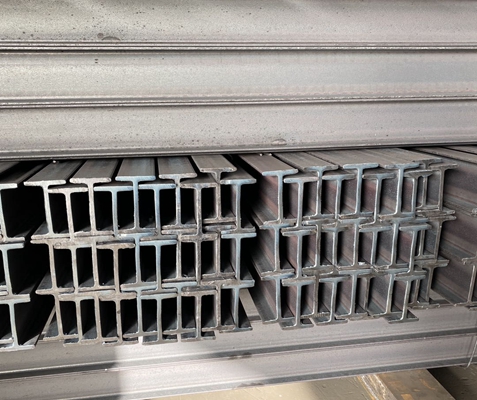

Hot rolled H Beam ASTM A36

H-beams are shaped like an H. H-beam is a structural beam made of rolled steel. It is incredibly strong. It gets its name because it looks like a capital H over its cross section.

Send E-mail

Chat Now

Products list

Gnee steel,steel supply from sky to sea are available,global reachable;

Steel Pipe

Seamless Steel Pipe Alloy Steel Pipe Carbon Steel Pipe API Line Pipe Welded Steel Pipe Galvanized Steel Pipe Fittings

Stainless Steel

Stainless Steel Coil/Sheet Stainless Steel Pipe Fittings

Steel Plate

Weather Resistant Steel Boiler Pressure Vessel Steel Shipbuilding Steel Plate Wear Resistant Steel Plate Hight Strength Low Alloy Steel Carbon Steel Checkered Steel Plate Alloy Steel Plate

H Beam Angle Channel Steel Round Bars

Galvanized Steel

Galvanized Coil/Sheet Prepainted Steel Coil Corrugated Roofing Sheet

Aluminum Metal

Automotive Steel

Email : sale@gneesteel.com

Mobile: +86 15824687445 kelly

Tel: +86 372-5055135

Address: No. 4-1114,Beichen Building,Beicang Town,Beichen District Tianjin,China.

Product Description Standards & Specification

Product Description

Product Description

Product Name	Hot rolled H Beam ASTM/ A36 Prime Structural carbon steel H Beam
Size	1.Web Width (H): 100-900mm 2.Flange Width (B): 100-300mm 3. Web Thickness (t1): 5-30mm 4. Flange Thickness (t2): 5-30m
Length	9m 12m
Standard	JIS G3101 EN10025 ASTM A36 ASTM A572 ASTM A992
Material	Q235B Q345B Q420C Q460C SS400 SS540 S235 S275 S355 A36 A572 G50 G60
Technique	Hot rolled
Application	Construction structure
Inspection	SGS BV INTERTEK
Packing	In bundle fasten by steel strip
Supply Ability	1000 tons per day
Payment	TT LC

Standards & Specification

Standards & Specification:

Standard Sectional Dimension					Section	Unit Weight		Informative Reference
Standard Sectional Dimension					Area			Geometrical			Radius of		Modulus of
Nominal	H X B	t1	t2	r	A			moment of inertia			Gyration of area		Section
Dimensional mm	mm	mm	mm	mm	cm2	kg/m	kg/12m	1x cm4	1ycm4	ix cm	iy cm	Zx cm3	Zy cm3
100 x 100	100 x100	6	8	10	21.90	17.20	206	383	134	4.18	2.47	76.50	26.7
125 x 125	125 x125	6.5	9	10	30.31	23.80	286	847	293	5.29	3.11	136	47.00
150 x150	150 x150	7	10	11	40.14	31.50	378	1,640	563	6.39	3.75	219.00	75.10
175 x175	175 x175	7.5	11	12	51.21	40.20	482	2,880	984	7.50	4.38	330.00	112.00
200 x200	200 x200	8	12	13	63.53	49.90	599	4,720	1,600	8.62	5.02	472.00	160.00
250 x250	250 x250	9	14	16	92.18	72.40	869	10,800	3,650	10.80	6.29	867.00	292.00
300 x300	300 x300	10	15	18	119.80	94.00	1128	20,400	6,750	13.10	7.51	1,360.00	450.00
350 x350	350 x350	12	19	20	173.9	137.00	1644	40,300	13,600	15.20	8.84	2,300.00	776.00

Identification	Nominal weight 1m	Nominal dimensions					Cross-section	Dimensions for detailing					Surface
	kg/m	mm					A	h1	d	Ø	pmin	pmax	AL	AG
		b	h	t1	t2	R1	cm2	mm	mm		mm	mm	m2/m	m2/m
		b	h	t1	t2	R1	cm2	mm	mm		mm	mm	m2/m	m2/m
IPE 80	6,0	46	80	3,8	5,2	5,0	7,64	69,6	59,6	-	-	-	0,328	54,64
IPE 100	8,1	55	100	4,1	5,7	7,0	10,30	88,6	74,6	-	-	-	0,400	49,33
IPE 120	10,4	64	120	4,4	6,3	7,0	13,20	107,4	93,4	-	-	-	0,475	45,82
IPE 140	12,9	73	140	4,7	6,9	7,0	16,40	126,2	112,2	-	-	-	0,551	42,70
IPE 160	15,8	82	160	5,0	7,4	9,0	20,10	145,2	127,2	-	-	-	0,623	39,47
IPE 180	18,8	91	180	5,3	8,0	9,0	23,90	164,0	146,0	M10	48	48	0,698	37,13
IPE 200	22,4	100	200	5,6	8,5	12,0	28,50	183,0	159,0	M10	54	58	0,768	34,36
IPE 220	26,2	110	220	5,9	9,2	12,0	33,40	201,6	177,6	M12	60	62	0,848	32,36
IPE 240	30,7	120	240	6,2	9,8	15,0	39,10	220,4	190,4	M12	66	68	0,922	30,02
IPE 270	36,1	135	270	6,6	10,2	15,0	45,90	249,6	219,6	M16	72	72	1,041	28,86
IPE 300	42,2	150	300	7,1	10,7	15,0	53,80	278,6	248,6	M16	72	86	1,160	27,46
IPE 330	49,1	160	330	7,5	11,5	18,0	62,60	307,0	271,0	M16	78	96	1,254	25,52
IPE 360	57,1	170	360	8,0	12,7	18,0	72,70	334,6	298,6	M22	88	88	1,353	23,70
IPE 400	66,3	180	400	8,6	13,5	21,0	84,50	373,0	331,0	M22	96	98	1,467	22,12
IPE 450	77,6	190	450	9,4	14,6	21,0	98,82	420,8	378,8	M24	100	102	1,605	20,69
IPE 500	90,7	200	500	10,2	16,0	21,0	115,50	468,0	426,0	M24	102	112	1,744	19,23
IPE 550	106,0	210	550	11,1	17,2	24,0	134,40	515,6	467,6	M24	110	122	1,877	17,78
IPE 600	122,0	220	600	12,0	19,0	24,0	156,00	562,0	514,0	M27

Identification	Section properties, static data
	strong axis x-x						weak axis y-y
	strong axis x-x						weak axis y-y
	Ix	Wel.x	Wpl.x	ix	Avy	Sx	Iy	Wel.y	Wpl.y	iy	Ss	It	Iw
	cm4	cm3	cm3	cm	cm2	cm3	cm4	cm3	cm3	cm	mm	cm4	cm
HEB 100	449,5	89,91	104,2	4,16	9,04	52,1	167,3	33,45	51,42	2,53	40,06	9,25	3,38
HEB 120	864,4	144,1	165,2	5,04	10,96	82,6	317,5	52,92	80,97	3,06	42,56	13,84	9,41
HEB 140	1509	215,6	245,4	5,93	13,08	123	549,7	78,52	119,8	3,58	45,06	20,06	22,48
HEB 160	2492	311,5	354,0	6,78	17,59	177	889,2	111,2	170,0	4,05	51,57	31,24	47,94
HEB 180	3831	425,7	481,4	7,66	20,24	241	1363	151,4	231,0	4,57	54,07	42,16	93,75
HEB 200	5696	569,6	642,5	8,54	24,83	321	2003	200,3	304,8	5,07	60,09	59,28	171,1
HEB 220	8091	735,5	827,0	9,43	27,92	414	2843	258,5	393,9	5,59	62,59	76,57	295,4
HEB 240	11260	938,3	1053	10,31	33,23	527	3923	326,9	498,4	6,08	68,60	102,7	486,9
HEB 260	14920	1148	1283	11,22	37,59	641	5135	395,0	602,2	6,58	73,12	123,8	753,7
HEB 280	19270	1376	1534	12,11	41,09	767	6595	471,0	717,6	7,09	74,62	143,7	1130
HEB 300	25170	1678	1869	12,99	47,43	934	8563	570,9	870,1	7,58	80,63	185,0	1688
HEB 320	30820	1926	2149	13,82	51,77	1070	9239	615,9	939,1	7,57	84,13	225,1	2069
HEB 340	36660	2156	2408	14,65	56,09	1200	9690	646,0	985,7	7,53	86,63	257,2	2454
HEB 360	43190	2400	2683	15,46	60,60	1340	10140	676,1	1032	7,49	89,13	292,5	2883
HEB 400	57680	2884	3232	17,08	69,98	1620	10820	721,3	1104	7,40	93,13	355,7	3817
HEB 450	79890	3551	3982	19,14	79,66	1990	11720	781,4	1198	7,33	97,63	440,5	5258
HEB 500	10700	4287	4815	21,19	89,82	2410	12620	841,6	1292	7,27	102,1	538,4	7018
HEB 550	136700	4971	5591	23,20	100,1	2800	13080	871,8	1341	7,17	104,6	600,3	8856
HEB 600	171000	5701	6425	25,17	110,8	3210	13530	902,0	1391	7,08	107,1	667,2	10970
HEB 650	210600	6480	7320	27,12	122,0	3660	13980	932,3	1441	6,99	109,6	739,2	13360
HEB 700	256900	7340	8327	28,96	137,1	4160	14440	962,7	1495	6,87	112,6	830,9	16060
HEB 800	359100	8977	10230	32,78	161,8	5110	14900	993,6	1553	6,68	118,6	946,0	21840
HEB 900	494100	10980	12580	36,48	188,8	6290	15820	1050	1658	6,53	123,6	1137	29460
HEB 1000	644700	12890	14860	40,15	212,5	7430	16280	1085	1716	6,38	126,1	1254	37640
