Product Details

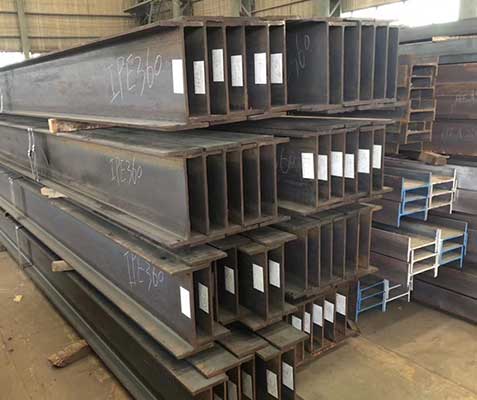

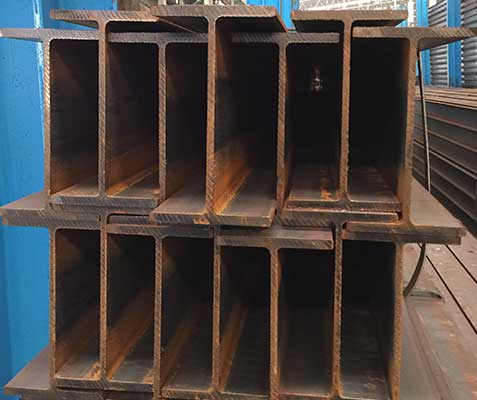

| European Standard HEA HEB IPE Steel section H I Beam | |
|
size |
100mm*68mm-900mm*300mm |
|
Length |
1--12m or as request |
|
Equal Angle |
Type: 2#-20# |
|
Size: 20-200mm |
|
|
Thickness: 3.0-24mm |
|
|
Weight: 0.597-71.168kg/m |
|
|
Unequal Angle |
Type: 2.5/1.6-20/12.5 |
|
Long Side: 25-200mm |
|
|
Short Side: 16-125mm |
|
|
Thickness: 3.0-18mm |
|
|
Weight: 1.687-43.588kg/m |
|
|
Standard |
ISO 9001-2008 / ISO 630 / JIS / ASTMISO 9001-2008 / ISO 630 / JIS / ASTM / BS1387-1985/ GB/T3091-2001,GB/T13793-92, ISO630/E235B/ JIS G3101/JIS G3131/JIS G3106/ |
|
Material |
Q195,Q215,Q235B,Q345B, S235JR/S235/S355JR/S355, SS440/SM400A/SM400B |
|
Technique |
Hot Rolled, casting |
|
Surface |
Oiled, sand blasting, galvanizing, painting,cutting as your request. |
|
Packing |
1.Water-proof plastic cloth, |
|
2.Woven bags, |
|
|
3.PVC package, |
|
|
4.Steel strips in bundles |
|
|
5.As your requirment |
|
|
Applicaiton |
Building structure and engineering structure, such as the beam, Bridges, transmission tower, lifting transportation machinery, ship, industrial furnace, reaction tower, container frame and warehouse |
|
Payment&Trade Terms |
1.Payment : T/T,L/C, D/P, Western union |
|
2.Trade Terms:FOB/CFR/CIF |
|
|
3.Minimum quantity of order : 5 MT (5,000KGS) |
|
|
Delivery Time |
1.Usually,within10-20days after receiving deposit or LC. |
|
2.According to the order quantity |
|
| ACCORDING TO STANDARD: JIS G3192 OR GB/T11263-2005 | |||
| H beam Section sizenma(mm) | Weight (kg/m) | ||
| Height×Breadth | Web thichness | Flange thichness | |
| 100×100 | 6 | 8 | 16.9 |
| 125×125 | 6.5 | 9 | 23.6 |
| 150×150 | 7 | 10 | 31.1 |
| 175×175 | 7.5 | 11 | 40.4 |
| 200×200 | 8 | 12 | 49.9 |
| 250×250 | 9 | 14 | 71.8 |
| 300×300 | 10 | 15 | 93.0 |
| 300×300 | 15 | 15 | 105.0 |
| 350×350 | 12 | 19 | 134.9 |
| 400×400 | 13 | 21 | 171.7 |
| 148×100 | 6 | 9 | 20.7 |
| 194×150 | 6 | 9 | 29.9 |
| 244×175 | 7 | 11 | 43.6 |
| 294×200 | 8 | 12 | 55.8 |
| 340×250 | 9 | 14 | 78.1 |
| 390×300 | 10 | 16 | 104.6 |
| 440×300 | 11 | 18 | 120.8 |
| 482×300 | 11 | 15 | 110.8 |
| 488×300 | 11 | 18 | 124.9 |
| 582×300 | 12 | 17 | 132.8 |
| 588×300 | 12 | 20 | 147.0 |
| 100×50 | 5 | 7 | 9.3 |
| 125×60 | 6 | 8 | 13.1 |
| 150×75 | 5 | 7 | 14.0 |
| 175×90 | 5 | 8 | 18.0 |
| 198×99 | 4.5 | 7 | 17.8 |
| 200×100 | 5.5 | 8 | 20.9 |
| 248×124 | 5 | 8 | 25.1 |
| 250×125 | 6 | 9 | 29.0 |
| 298×149 | 5.5 | 8 | 32.0 |
| 300×150 | 6.5 | 9 | 36.7 |
| 346×174 | 6 | 9 | 41.2 |
| 350×175 | 7 | 11 | 49.4 |
| 396×199 | 7 | 11 | 56.1 |
| 400×200 | 8 | 13 | 65.4 |
| 446×199 | 8 | 12 | 65.1 |
| 450×200 | 9 | 14 | 74.9 |
| 496×199 | 9 | 14 | 77.9 |
| 500×200 | 10 | 16 | 88.1 |
| 596×199 | 10 | 15 | 92.4 |
| 600×200 | 11 | 17 | 103.4 |
| 700×300 | 13 | 24 | 181.8 |
| 800×300 | 14 | 26 | 206.8 |
| 900×300 | 16 | 28 | 240.1 |
| Standard Sectional Dimension | Section | Unit Weight |
Informative Reference | ||||||||||
Area |
Geometrical | Radius of | Modulus of | ||||||||||
Nominal |
H X B |
t1 |
t2 |
r |
A |
moment of inertia | Gyration of area | Section | |||||
Dimensional mm |
mm |
mm |
mm |
mm |
cm2 |
kg/m |
kg/12m |
1x cm4 |
1ycm4 |
ix cm |
iy cm |
Zx cm3 |
Zy cm3 |
100 x 100 |
100 x100 |
6 |
8 |
10 |
21.90 |
17.20 |
206 |
383 |
134 |
4.18 |
2.47 |
76.50 |
26.7 |
125 x 125 |
125 x125 |
6.5 |
9 |
10 |
30.31 |
23.80 |
286 |
847 |
293 |
5.29 |
3.11 |
136 |
47.00 |
150 x150 |
150 x150 |
7 |
10 |
11 |
40.14 |
31.50 |
378 |
1,640 |
563 |
6.39 |
3.75 |
219.00 |
75.10 |
175 x175 |
175 x175 |
7.5 |
11 |
12 |
51.21 |
40.20 |
482 |
2,880 |
984 |
7.50 |
4.38 |
330.00 |
112.00 |
200 x200 |
200 x200 |
8 |
12 |
13 |
63.53 |
49.90 |
599 |
4,720 |
1,600 |
8.62 |
5.02 |
472.00 |
160.00 |
250 x250 |
250 x250 |
9 |
14 |
16 |
92.18 |
72.40 |
869 |
10,800 |
3,650 |
10.80 |
6.29 |
867.00 |
292.00 |
300 x300 |
300 x300 |
10 |
15 |
18 |
119.80 |
94.00 |
1128 |
20,400 |
6,750 |
13.10 |
7.51 |
1,360.00 |
450.00 |
350 x350 |
350 x350 |
12 |
19 |
20 |
173.9 |
137.00 |
1644 |
40,300 |
13,600 |
15.20 |
8.84 |
2,300.00 |
776.00 |
FAQ
1.Q: Are you a factory or trading company?
A: We are professional manufacturer, and our company also is a very professional a trade company for steel products.We can provide a wide range of steel products.
2.Q:What do your factory do regarding quality control?
A: We have obtained ISO, CE and other certifications. From materials to products, we check every process to maintain good quality.
3.Q: Can I get samples before order ?
A: Yes, of course. Usually our samples are free. we can produce by your samples or technical drawings.
4.Q:How do you make our business long-term and good relationship?
A:We keep good quality and competitive price to ensure our customers benefit ; We respect every customer as our friend and we sincerely do business and make friends with them.No matter where they come from.
5.Q:what is your delivery time ?
A: Our delivery time is about one week, timing according to the number of customers.
