ASTM A992 steel contains small content of vanadium or columbium, copper, nickel, chrome and molybdenum, all of which greatly improve A992 comprehensive property. On one hand, it is similar to A572-50 in low ratio of weight-to-strength. on the other hand, the alloy elements optimize the inside structure of the steel and improves its properties.

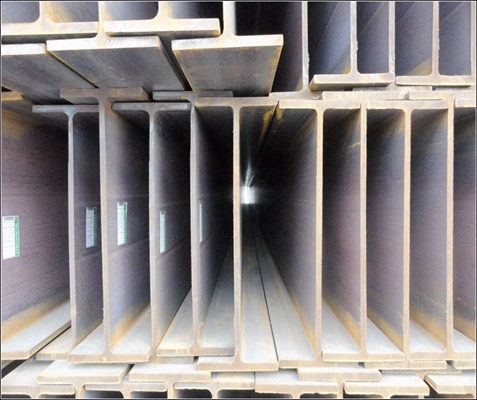

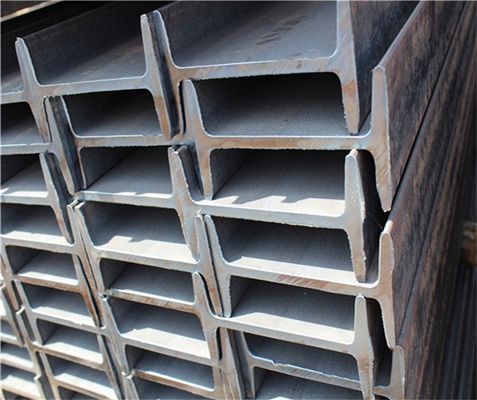

ASTM A992 Steel I beam is the prime alternative for bridge construction and building frames for its yield strength reaches 65 ksi.
Product description:
| Steel grade | Styles | Carbon, max, % | Manganese, % | Silicon, max, % | Vanadium, max, % | Columbium, max, % | Phosphorus, max, % | Sulfur, max, % |
| A992 | Steel sections | 0.23 | 0.50 - 1.60 | 0.40 | 0.15 | 0.05 | 0.035 | 0.045 |
| Steel grade | Styles | Tensile strength, ksi | Yield point, min, ksi |
| A992 | Steel sections | 65 | 65 |
| Item | Weight (kg/m) | Depth (mm) | Width (mm) | Web thickness (mm) | Flange thickness (mm) |
| IPE 80 | 6.0 | 80 | 46 | 3.8 | 5.2 |
| IPE 100 | 8.1 | 100 | 55 | 4.1 | 5.7 |
| IPE 120 | 10.4 | 120 | 64 | 4.4 | 6.3 |
| IPE 140 | 12.9 | 140 | 73 | 4.7 | 6.9 |
| IPE 160 | 15.8 | 160 | 82 | 5.0 | 7.4 |
| IPE 180 | 18.8 | 180 | 91 | 5.3 | 8.0 |
| IPE 200 | 22.4 | 200 | 100 | 5.6 | 8.5 |
| IPE 220 | 26.2 | 220 | 110 | 5.9 | 9.2 |
| IPE 240 | 30.7 | 240 | 120 | 6.2 | 9.8 |
| IPE 270 | 36.1 | 270 | 135 | 6.6 | 10.2 |
| IPE 300 | 42.2 | 300 | 150 | 7.1 | 10.7 |
| IPE 330 | 49.1 | 330 | 160 | 7.5 | 11.5 |
| IPE 360 | 57.1 | 360 | 170 | 8 | 12.7 |
| IPE 400 | 66.3 | 400 | 180 | 8.6 | 13.6 |
| IPE 450 | 79.1 | 450 | 190 | 9.4 | 14.6 |
| IPE 500 | 90.7 | 500 | 200 | 10.2 | 16 |
| IPE 550 | 106.0 | 550 | 210 | 11.2 | 17.2 |
| IPE 600 | 124.4 | 600 | 220 | 12 | 19 |
| Item | Weight (kg/m) | Depth (mm) | Width (mm) | Web thickness (mm) | Flange thickness (mm) |
| IPN 80 | 5.9 | 80 | 42 | 3.9 | 5.9 |
| IPN 100 | 8.3 | 100 | 50 | 4.5 | 6.8 |
| IPN 120 | 11.1 | 120 | 58 | 5.1 | 7.7 |
| IPN 140 | 14.3 | 140 | 66 | 5.7 | 8.6 |
| IPN 160 | 17.9 | 160 | 74 | 6.3 | 9.5 |
| IPN 180 | 21.9 | 180 | 82 | 6.9 | 10.4 |
| IPN 200 | 26.2 | 200 | 90 | 7.5 | 11.3 |
| IPN 220 | 31.1 | 220 | 98 | 8.1 | 12.2 |
| IPN 240 | 36.2 | 240 | 106 | 8.7 | 13.1 |
| IPN 260 | 41.9 | 260 | 113 | 9.4 | 14.1 |
| IPN280 | 47.9 | 280 | 119 | 10.1 | 15.2 |
| IPN 300 | 54.2 | 300 | 125 | 10.8 | 16.2 |
| IPN320 | 61.0 | 320 | 131 | 11.5 | 17.3 |
| IPN 340 | 68.0 | 340 | 137 | 12.2 | 18.3 |
| IPN 360 | 76.1 | 360 | 143 | 13 | 19.5 |
