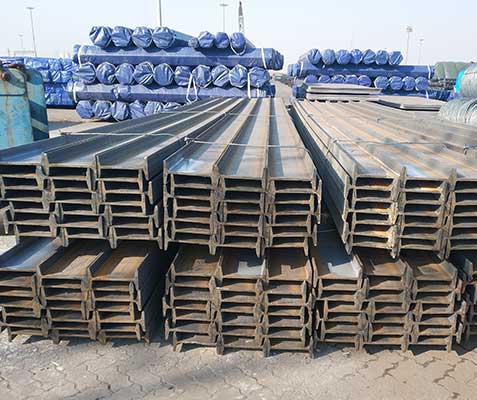

ASTM A588 Steel Beam

ASTM A588 carbon steel beam exhibits high strength with good atmospheric corrosion resistance.

Send E-mail

Chat Now

Products list

Gnee steel,steel supply from sky to sea are available,global reachable;

Steel Pipe

Seamless Steel Pipe Alloy Steel Pipe Carbon Steel Pipe API Line Pipe Welded Steel Pipe Galvanized Steel Pipe Fittings

Stainless Steel

Stainless Steel Coil/Sheet Stainless Steel Pipe Fittings

Steel Plate

Weather Resistant Steel Boiler Pressure Vessel Steel Shipbuilding Steel Plate Wear Resistant Steel Plate Hight Strength Low Alloy Steel Carbon Steel Checkered Steel Plate Alloy Steel Plate

H Beam Angle Channel Steel Round Bars

Galvanized Steel

Galvanized Coil/Sheet Prepainted Steel Coil Corrugated Roofing Sheet

Aluminum Metal

Automotive Steel

Email : sale@gneesteel.com

Mobile: +86 15824687445 kelly

Tel: +86 372-5055135

Address: No. 4-1114,Beichen Building,Beicang Town,Beichen District Tianjin,China.

Product introduction Technical data

Product introduction

ASTM A588 steel beam not only enjoys high tensile & yield strength but also exhibits good resistance against atmospheric corrosion for its small copper content. Given its high strength, it weighs less than A36 steel section without a reduction in strength. At the same time, it is the best material for outdoor applications and shows orange-brown surface.

Product description:

Item: ASTM A588 Steel Beam.
Technology: hot rolled.
Surface treatment: black, galvanized or primed.
Sizes: IPN & IPE european standard.
Web width: 42 - 215 mm.
Depth: 80 - 600 mm.
Web thickness: 3.8 - 21.6 mm.
Note: Special steel beam sizes are customized on order.

Technical data

**ASTM A588 steel beam chemical composition (heat analysis)**
Steel grade	Carbon, max, %	Manganese, %	Phosphorus, max, %	Sulfur, max, %	Silicon, %	Nickel, max, %	Chromium, %	Copper	Vanadium, %
A588 grade A	0.19	0.80 - 1.25	0.04	0.05	0.30 - 0.65	0.40	0.40 - 0.65	0.25 - 0.40	0.02 - 0.10

**ASTM A588 steel beam mechanical property**
Steel grade	Styles	Tensile Sstrength, ksi [MPa]	Yield point, min, ksi [MPa]	Elongation in 8 in. [200 mm], min, %	Elongation in 2 in. [50 mm], min, %
A588 grade A	Steel angles	70 [485]	50 [345]	18	21

**ASTM A588 steel beam IPE dimensions - parallel flange beam**
Item	Weight (kg/m)	Depth (mm)	Width (mm)	Web thickness (mm)	Flange thickness (mm)
IPE 80	6.0	80	46	3.8	5.2
IPE 100	8.1	100	55	4.1	5.7
IPE 120	10.4	120	64	4.4	6.3
IPE 140	12.9	140	73	4.7	6.9
IPE 160	15.8	160	82	5.0	7.4
IPE 180	18.8	180	91	5.3	8.0
IPE 200	22.4	200	100	5.6	8.5
IPE 220	26.2	220	110	5.9	9.2
IPE 240	30.7	240	120	6.2	9.8
IPE 270	36.1	270	135	6.6	10.2
IPE 300	42.2	300	150	7.1	10.7
IPE 330	49.1	330	160	7.5	11.5
IPE 360	57.1	360	170	8	12.7
IPE 400	66.3	400	180	8.6	13.6
IPE 450	79.1	450	190	9.4	14.6
IPE 500	90.7	500	200	10.2	16
IPE 550	106.0	550	210	11.2	17.2
IPE 600	124.4	600	220	12	19

**ASTM A588 steel beam IPN dimensions - tapered flange beam**
Item	Weight (kg/m)	Depth (mm)	Width (mm)	Web thickness (mm)	Flange thickness (mm)
IPN 80	5.9	80	42	3.9	5.9
IPN 100	8.3	100	50	4.5	6.8
IPN 120	11.1	120	58	5.1	7.7
IPN 140	14.3	140	66	5.7	8.6
IPN 160	17.9	160	74	6.3	9.5
IPN 180	21.9	180	82	6.9	10.4
IPN 200	26.2	200	90	7.5	11.3
IPN 220	31.1	220	98	8.1	12.2
IPN 240	36.2	240	106	8.7	13.1
IPN 260	41.9	260	113	9.4	14.1
IPN280	47.9	280	119	10.1	15.2
IPN 300	54.2	300	125	10.8	16.2
IPN320	61.0	320	131	11.5	17.3
IPN 340	68.0	340	137	12.2	18.3
IPN 360	76.1	360	143	13	19.5

ASTM A588 applications:
As a result of A588 steel beam bearing copper content, it is very suitable for outdoor applications for its excellent atmospheric corrosion resistance.
