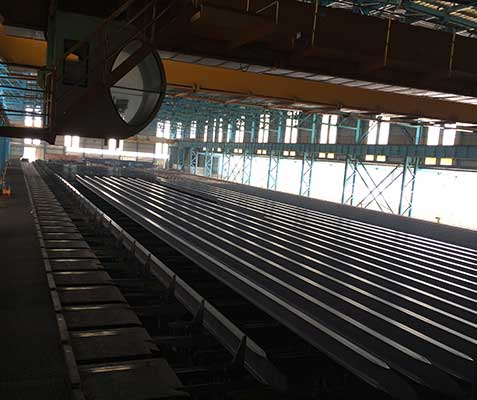

ASTM A36 carbon steel i-shaped section
ASTM A36 i beam has intermediate tensile and yield strength for its low carbon content without other alloy elements. A36 steel beams are common material for construction and civil engineering as a result of competitively low cost & good properties in welding, forming and machining.
Hot-dip galvanized carbon steel beams will effectively protect the steel from corrosion of weathers & environments. The amount of zinc coating is customized according to your requirement.
Product description:
| Steel grade | Styles | Carbon, max, % | Manganese, % | Phosphorus, max, % | Sulfur, max, % | Silicon, % |
| A36 | Steel sections | 0.26 | -- | 0.04 | 0.05 | ≤0.40 |
Note: Copper content is available when your order is specified.
| Steel grade | Styles | Tensile strength, ksi [MPa] | Yield point, min, ksi [MPa] | Elongation in 8 in. [200 mm], min, % | Elongation in 2 in. [50 mm], min, % |
| A36 | Steel sections | 58 - 80 [400 - 550] | 36 [250] | 20 | 21 |
| Item | Weight (kg/m) | Depth (mm) | Width (mm) | Web thickness (mm) | Flange thickness (mm) |
| IPE 80 | 6.0 | 80 | 46 | 3.8 | 5.2 |
| IPE 100 | 8.1 | 100 | 55 | 4.1 | 5.7 |
| IPE 120 | 10.4 | 120 | 64 | 4.4 | 6.3 |
| IPE 140 | 12.9 | 140 | 73 | 4.7 | 6.9 |
| IPE 160 | 15.8 | 160 | 82 | 5.0 | 7.4 |
| IPE 180 | 18.8 | 180 | 91 | 5.3 | 8.0 |
| IPE 200 | 22.4 | 200 | 100 | 5.6 | 8.5 |
| IPE 220 | 26.2 | 220 | 110 | 5.9 | 9.2 |
| IPE 240 | 30.7 | 240 | 120 | 6.2 | 9.8 |
| IPE 270 | 36.1 | 270 | 135 | 6.6 | 10.2 |
| IPE 300 | 42.2 | 300 | 150 | 7.1 | 10.7 |
| IPE 330 | 49.1 | 330 | 160 | 7.5 | 11.5 |
| IPE 360 | 57.1 | 360 | 170 | 8 | 12.7 |
| IPE 400 | 66.3 | 400 | 180 | 8.6 | 13.6 |
| IPE 450 | 79.1 | 450 | 190 | 9.4 | 14.6 |
| IPE 500 | 90.7 | 500 | 200 | 10.2 | 16 |
| IPE 550 | 106.0 | 550 | 210 | 11.2 | 17.2 |
| IPE 600 | 124.4 | 600 | 220 | 12 | 19 |
| Item | Weight (kg/m) | Depth (mm) | Width (mm) | Web thickness (mm) | Flange thickness (mm) |
| IPN 80 | 5.9 | 80 | 42 | 3.9 | 5.9 |
| IPN 100 | 8.3 | 100 | 50 | 4.5 | 6.8 |
| IPN 120 | 11.1 | 120 | 58 | 5.1 | 7.7 |
| IPN 140 | 14.3 | 140 | 66 | 5.7 | 8.6 |
| IPN 160 | 17.9 | 160 | 74 | 6.3 | 9.5 |
| IPN 180 | 21.9 | 180 | 82 | 6.9 | 10.4 |
| IPN 200 | 26.2 | 200 | 90 | 7.5 | 11.3 |
| IPN 220 | 31.1 | 220 | 98 | 8.1 | 12.2 |
| IPN 240 | 36.2 | 240 | 106 | 8.7 | 13.1 |
| IPN 260 | 41.9 | 260 | 113 | 9.4 | 14.1 |
| IPN280 | 47.9 | 280 | 119 | 10.1 | 15.2 |
| IPN 300 | 54.2 | 300 | 125 | 10.8 | 16.2 |
| IPN320 | 61.0 | 320 | 131 | 11.5 | 17.3 |
| IPN 340 | 68.0 | 340 | 137 | 12.2 | 18.3 |
| IPN 360 | 76.1 | 360 | 143 | 13 | 19.5 |
| IPN 400 | 92.4 | 400 | 155 | 14.4 | 21.6 |
| IPN 450 | 115 | 450 | 170 | 16.2 | 24.3 |
| IPN 500 | 141 | 500 | 185 | 18 | 27 |
| IPN 550 | 166 | 550 | 200 | 19 | 30 |
| IPN 600 | 199 | 600 | 215 | 21.6 | 32.4f |
