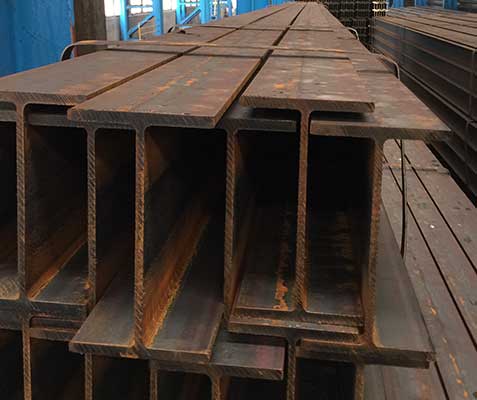

316L STAINLESS STEEL H BEAM

Stainless steel beams are used in a variety of industries and applications including food service, chemical, pharmaceutical and more. Stainless steel beams can be extruded, hot rolled or laser fused. The following benefits and features make stainless steel channel a great choice for a wide range of industries and applications.

Product Name	316L stainless steel H beam
Thickness	3mm-12mm
Size	4020/5025/6030/7035/8040/9045/10050/12060/13065/ 14070/15075/16080/18090/200100
Technique	Hot Rolled
Application	Building /Construction/Steel Frame
Material	201,202,301,304,321,316,316L,etc

Size	Depth flange	Web	Flange thickness	Weight
Size	width(mm)	thickness(mm)	(mm)	(kg/m)
IPE100	100×55	4.1	5.7	8.1
IPE120	120×64	4.4	6.3	10.4
IPE140	140×73	4.7	6.9	12.9
IPE160	160×82	5	7.4	15.8
IPE180	180×91	5.3	8	18.8
IPE200	200×100	5.6	8.5	22.4
IPE220	220×110	5.9	9.2	26.2
IPE240	240×120	6.2	9.8	30.7
IPE270	270×135	6.6	10.2	36.1

Grade	C	Si	Mn	P	S	Ni	Cr	Mo
201	≤0 .15	≤0 .75	5. 5-7. 5	≤0.06	≤ 0.03	3.5 -5.5	16 .0 -18.0	-
202	≤0 .15	≤l.0	7.5-10.0	≤0.06	≤ 0.03	4.0-6.0	17.0-19.0	-
301	≤0 .15	≤l.0	≤2.0	≤0.045	≤ 0.03	6.0-8.0	16.0-18.0	-
302	≤0 .15	≤1.0	≤2.0	≤0.035	≤ 0.03	8.0-10.0	17.0-19.0	-
304	≤0 .0.08	≤1.0	≤2.0	≤0.045	≤ 0.03	8.0-10.5	18.0-20.0	-
304L	≤0.03	≤1.0	≤2.0	≤0.035	≤ 0.03	9.0-13.0	18.0-20.0	-
309S	≤0.08	≤1.0	≤2.0	≤0.045	≤ 0.03	12.0-15.0	22.0-24.0	-
310S	≤0.08	≤1.5	≤2.0	≤0.035	≤ 0.03	19.0-22.0	24.0-26.0
316	≤0.08	≤1.0	≤2.0	≤0.045	≤ 0.03	10.0-14.0	16.0-18.0	2.0-
316L	≤0 .03	≤1.0	≤2.0	≤0.045	≤ 0.03	12.0 - 15.0	16 .0 -1 8.0	2.0 -
321	≤ 0 .08	≤1.0	≤2.0	≤0.035	≤ 0.03	9.0 - 13 .0	17.0 -1 9.0	-
630	≤ 0 .07	≤1.0	≤1.0	≤0.035	≤ 0.03	3.0-5.0	15.5-17.5	-
631	≤0.09	≤1.0	≤1.0	≤0.030	≤0.035	6.50-7.75	16.0-18.0	-
904L	≤ 2 .0	≤0.045	≤1.0	≤0.035	-	23.0·28.0	19.0-23.0	4.0-5.0
2205	≤0.03	≤1.0	≤2.0	≤0.030	≤0.02	4.5-6.5	22.0-23.0	3.0-3.5
2507	≤0.03	≤0.8	≤1.2	≤0.035	≤0.02	6.0-8.0	24.0-26.0	3.0-5.0
2520	≤0.08	≤1.5	≤2.0	≤0.045	≤ 0.03	0.19 -0. 22	0. 24 -0 . 26	-
410	≤0.15	≤1.0	≤1.0	≤0.035	≤ 0.03	-	11.5-13.5	-
430	≤0.1 2	≤0.75	≤1.0	≤ 0.040	≤ 0.03	≤0.60	16.0 -18.0	-

Surface	Definition	Application
No.1	The surface finished by heat treatment and pickling or processes corresponding there to after hot rolling.	Chemical tank, pipe etc.
No.3	Those finished by polishing with No.100 to No.120 abrasives specified in JIS R6001.	Kitchen utensils, Building construction etc.
No.4	Those finished by polishing with No.150 to No.180 abrasives specified in JIS R6001.	Kitchen utensils, Building construction, Medical equipment etc.
2B	Those finished, after cold rolling, by heat treatment, pickling or other equivalent treatment and lastly by cold rolling to given appropriate luster.	Medical equipment, Food industry, Construction material, Kitchen utensils etc.
BA (No.6)	Those processed with bright heat treatment after cold rolling.	Kitchen utensils, Electric equipment, Building construction etc.
Mirror (No.8)	Shinning like a mirror	Building construction, decoration etc.
Hairline	Those finished polishing so as to give continuous polishing streaks by using abrasive of suitable grain size.	Building Construction etc.
