SS400 Angle steel

Angle steel, commonly known as angle iron, is a long steel with two sides perpendicular to each other. There are equal angle steel and unequal angle steel.The width of two sides of an equal angle steel is equal. The specification is expressed in mm of side width × side width × side thickness. Such as "∟ 30 × 30 × 3", that is to say, equal angle steel with side width of 30mm and side thickness of 3mm. It can also be expressed by model. The model is the centimeter of the side width, such as ∟ 3 × 3. The model does not represent the dimensions of different edge thicknesses in the same model, so the edge width and edge thickness dimensions of angle steel shall be filled in completely in the contract and other documents to avoid using the model alone. The specification of hot rolled equal leg angle steel is 2 × 3-20 × 3.

Product Name	Steel Angle、Angle Steel、iron Angle、Angle Bar，MS angle，Carbon Steel Angle
Material	Carbon Steel/Mild Steel/non-alloy and alloy steel
Grade	SS400 A36 ST37-2 ST52 S235JR S275JR S355JR Q235B Q345B
Size(Equal)	20x20mm-250x250mm
Size(unequal)	40*30mm-200*100mm
Length	6000mm/9000mm/12000mm
Standard	GB, ASTM, JIS, DIN, BS, NF,etc.
Thickness tolerance	5%-8%
Application	Mechanical&manufacturing,Steel structure,Shipbuilding,Bridging,Automobile classis,Construction,Decoration.

Description of Angle steel
Angle steel can be used to form various stress members according to the different needs of the structure, and can also be used as the connection between members. Widely used In all kinds of building structures and engineering structures, such as beams, bridges, transmission towers, lifting and transportation machinery, ships, industrial furnaces, reaction towers, container racks, cable trench supports, power piping, bus support installation, and warehouse shelves.

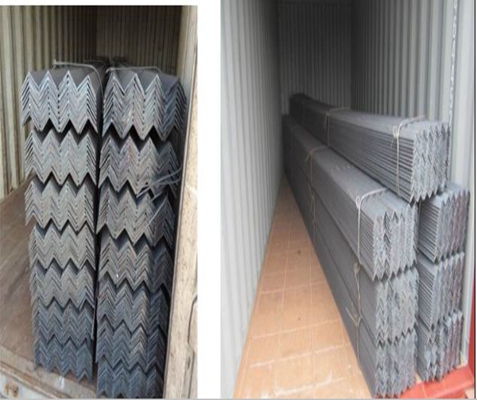

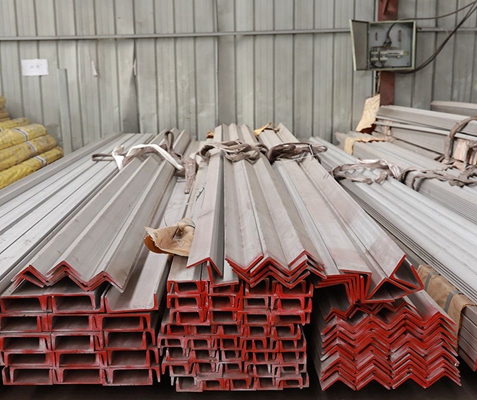

Detailed Images
Unequal angle steel is widely used in various metal structures, bridges, machinery manufacturing and shipbuilding industry, various building structures and engineering structures, such as beams, bridges, transmission towers, hoisting and transportation machinery, ships, industrial furnaces, reaction towers, container racks and warehouses
