DIN ST52-2 Angle Steel

DIN ST52-2 Angle Steel
ST52 steel angle with 0.23% carbon content and 355 MPa yield point strength is suitable for weldable & supporting components. According to chemical composition & mechanical property, it is similar to S355N of EN 10025-3.

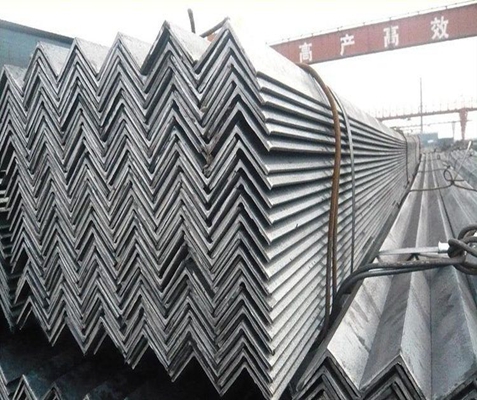

ST52-3 angle steel bar
Compared with popular ASTM A36, ST52 has higher strength and excellent weldability. It is also used in everyday life and industrial applications like warehouse, equipment and so on.
Note: Although sharing similar properties, they are also a bit different. Advise us your detailed requirements, the most suitable steel grade will be told.

Product description:

• Item: ST52 angle steel.
• Standard: DIN 17100.
• Technology: hot rolled.
• Type: equal & unequal.
• Surface: black or galvanized or pre-painting.
• Length: 6 m, 9 m, 12 m or per your request.
• Equal angle:
  • Size: 20 × 20 mm to 200 × 200 mm.
  • Thickness: 3 to 20 mm.
  • Length: 6 m, 9 m, 12 m or per your request.
• Unequal angle:
  • Size: 30 × 20 mm to 250 × 90 mm.
  • Thickness: 3 to 10 mm.
  • Length: 6 m, 9 m, 12 m or per your request.

Chemical composition

Steel grade	Styles	Carbon, max, %	Silicon, %	Manganese, %	Phosphorus, max, %	Sulfur, max, %
ST52	Steel angles	0.23	<0.60	<1.60	0.045	0.045



Mechanical property

Steel grade	Styles	Tensile strength, ksi [MPa]	Yield point, min, ksi [MPa]	Elongation, min, δ5, %
ST52	Steel angles	75 - 92 [510 - 630]	52 [355]	21
