S355J0WP Steel

 Low temperature impacting test
 Cutting and welding as per end user's demands
 More striction on some chemical elements contains
 Ultrasonic test under EN 10160,ASTM A435,A577,A578

Product: Hot rolled steels with improved atmospheric corrosion resistance
Grade: EN10025-5 S355J0WP
S355J0WP steel applicable thickness or Diameter: Plate ≤150mm, Sections/shapes ≤40mm,

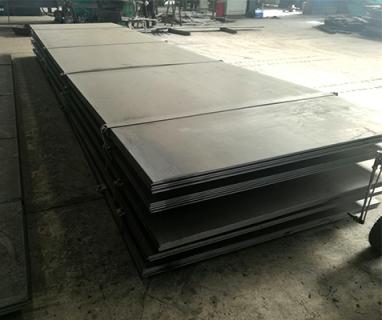

S355J0WP steel applicable delivery product: S355J0WP steel plates, S355J0WP steel strip in coil, S355J0WP steel sheet, S355J0WP steel Shapes, S355J0WP section steels,
S355J0WP delivery condition: Normalizing rolling (+N), As rolled (+AR)
S355J0WP Weathering steel chemical composition


Grade	Material No.	C max	Si max	Mn	P max	S max	N max	Cr max	Cu max
S355J0WP	1.8945	0.12	0.75	1.0	0.06-0.15	0.035	0.009	0.30-1.25	0.25-0.55

S355J0WP Normalized steel Mechanical properties in room temperature

Grade

Material No.

Min Yield strength in different thickness

Min tensile strength in different thickness

Elongation in different thickness

≤ 16

>16 ≤40

>40 ≤63

>63 ≤80

>80 ≤100

>100 ≤150

≤ 3

>3≤ 100

>100≤150

≤1.5

>2≤2.5

>2.5≤3

>3 ≤40

>40 ≤63

>63 ≤100

>100≤150

S355J0WP

1.8945

355

345

-

-

-

-

510- 680

470- 630

-

16

17

18

22

Thickness (mm)
S355J0WP	≤ 16	> 16 ≤ 40	> 40 ≤ 63	> 63 ≤ 80	> 80 ≤ 100	> 100
Yield strength (≥Mpa)	355	345	345	345	345	345
	< 3	≥ 3 ≤ 100				> 100
Tensile strength (Mpa)	510-680	470-630				470-630

Chemical composition for S355J0WP Corten steel (Heat Analysis Max%)

Main chemical elements composition of S355J0WP
C	Si	Mn	P	S	N	Cr	Cu
0.12	0.75	1.00	0.06-0.15	0.035	0.009	0.30-1.25	0.25-0.55
