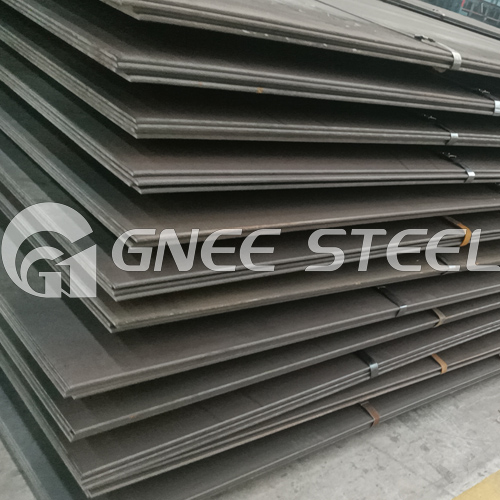

NM400 500 Steel Plate

NMwear plate is the world's leading abrasion-resistant (AR) steel. NM STEEL is hard through and through, from the surface deep down to its core, giving you extended service life and high productivity in the most challenging environments.

Send E-mail

Chat Now

Products list

Gnee steel,steel supply from sky to sea are available,global reachable;

Steel Pipe

Seamless Steel Pipe Alloy Steel Pipe Carbon Steel Pipe API Line Pipe Welded Steel Pipe Galvanized Steel Pipe Fittings

Stainless Steel

Stainless Steel Coil/Sheet Stainless Steel Pipe Fittings

Steel Plate

Weather Resistant Steel Boiler Pressure Vessel Steel Shipbuilding Steel Plate Wear Resistant Steel Plate Hight Strength Low Alloy Steel Carbon Steel Checkered Steel Plate Alloy Steel Plate

H Beam Angle Channel Steel Round Bars

Galvanized Steel

Galvanized Coil/Sheet Prepainted Steel Coil Corrugated Roofing Sheet

Aluminum Metal

Automotive Steel

Email : sale@gneesteel.com

Mobile: +86 15824687445 kelly

Tel: +86 372-5055135

Address: FLAT/RM 1512 15/F LUCKY CENTRE NO.165-171 WAN CHAI ROAD WAN CHAI HK

Product introduction Technical data

Product introduction

NM400 is an abrasion resistant steel with a nominal hardness of 400 HBW. Typical applications are components and structures subject to wear
Chemical Composition of NM400 Wear Abrasion Resistant Sheet Plates

Technical data

Chemical Composition of NM400 Wear Abrasion Resistant Sheet Plates

Plate	C	Si	Mn	P	S	Cr	Ni	Mo	B	CEV	CET
thickness mm	max %	max %	max %	max %	max %	max %	max %	max %	max %	typv	typv
3-(8)	0.15	0.7	1.6	0.025	0.01	0.3	0.25	0.25	0.004	0.33	0.23
08/20/13	0.15	0.7	1.6	0.025	0.01	0.5	0.25	0.25	0.004	0.37	0.27
(20)-32	0.18	0.7	1.6	0.025	0.01	1	0.25	0.25	0.004	0.48	0.29
(32)-45	0.22	0.7	1.6	0.025	0.01	1.4	0.5	0.6	0.004	0.57	0.31
(45)-51	0.22	0.7	1.6	0.025	0.01	1.4	0.5	0.6	0.004	0.57	0.38
(51)-80	0.27	0.7	1.6	0.025	0.01	1.4	1	0.6	0.004	0.65	0.41
(80)-130	0.32	0.7	1.6	0.025	0.01	1.4	1.5	0.6	0.004	0.73

Mechanical Properties of NM400 Wear Abrasion Resistant Sheet Plates

Grade	Mechanical Property			Charpy V Impact Test
NM 400	Yield	Tensile	Elongation	Degree	longitudinal
	Min Mpa	Mpa	Min %	-40	J
	1000	1250	10	-40	45

NM 450 is an abrasion-resistant steel with a nominal hardness of 450 HBW. NM 450 combines good bendability and weldability with an option for guaranteed impact toughness (NM 450 Tuf). The products can be used in many different components and structures that are subject to wear.

Chemical Properties Of NM 450 Plate

NM 450 Chemical Compositiom
Plate	C	Si	Mn	P	S	Cr	Ni	Mo	B	CEV	CET
thickness mm	max %	max %	max %	max %	max %	max %	max %	max %	max %	typv	typv
3-（8）	0.19	0.7	1.6	0.025	0.01	0.25	0.25	0.25	0.004	0.41	0.30
8-20	0.21	0.7	1.6	0.025	0.01	0.50	0.25	0.25	0.004	0.47	0.34
（20）-40	0.23	0.7	1.6	0.025	0.01	1.00	0.25	0.25	0.004	0.57	0.37
（40）-50	0.23	0.7	1.6	0.025	0.01	1.40	0.25	0.60	0.004	0.59	0.36
（50）-80	0.26	0.7	1.6	0.025	0.01	1.40	1.00	0.60	0.004	0.72	0.41

Plate thickness below 4 mm only after special agreement
CEV = C+Mn/6+(Cr+Mo+V)/5+(Cu+Ni)/15
CET = C + （Mn+Mo）/10+( Cr+ Cu)/20+ Ni/40

Mechanical Properties Of NM 450 Plate

Mechanical properties of NM 450
Grade	Mechanical Property			Charpy V Impact Test
NM 450	Yield	Tensile	Elongation	Degree	longitudinal
	Min Mpa	Mpa	Min %	-40	J
	1200	1400	10	-40	40

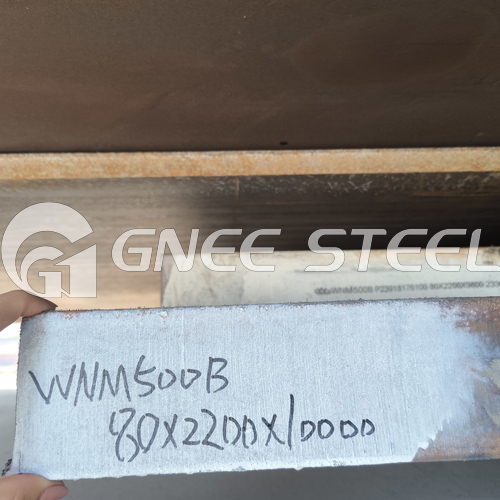

NM 500 is a bendable and weldable abrasion-resistant steel at a nominal hardness of 500 HBW. Suitable for applications that demand higher wear resistance. NM 500 is a bendable and weldable abrasion-resistant steel, with a nominal hardness of 500 HBW. Suitable for applications that demand higher wear resistance.

NM500 Chemical Composition

Plate	C	Si	Mn	P	S	Cr	Ni	Mo	B	CEV	CET
thickness mm	max %	max %	max %	max %	max %	max %	max %	max %	max %	typv	typv
04/13/13	0.27	0.7	1.6	0.025	0.01	1	0.25	0.25	0.004	0.49	0.34
(13)-32	0.29	0.7	1.6	0.025	0.01	1	0.5	0.3	0.004	0.62	0.41
(32)-40	0.29	0.7	1.6	0.025	0.01	1	1	0.6	0.004	0.64	0.43
(40)-80	0.3	0.7	1.6	0.025	0.01	1.5	1.5	0.6	0.004	0.74

Mechanical Property NM 500

Grade	Mechanical Property			Charpy V Impact Test
NM 500	HBW Thickness/Mpa		Elongation	Degree	longitudinal
	4-32MM	470-530	Min %	-40	J
	(32)-80	450-540	10	-40	40
