ASTM A514 Alloy Steel Plate

The A514 plate steels are a group of quenched and tempered alloys with many attractive advantages and characteristics. It has a minimum tensile strength of 100 ksi (689 MPa) and at least 110 ksi (758 MPa) ultimate. Plates from 2.5 inches to 6.0 inches have a specified tensile strength of 90 ksi (621 MPa) and 100 - 130 ksi (689 - 896 MPa) ultimate. A514 plate also provides good weldability, and toughness at low atmospheric temperatures. The ASTM A514 group is designed for a wide range of structural uses as well as machinery and equipment.  However, the primary use  is as a structural steel in building construction. This group of steel, which also includes A517, alloy steel combine optimum strength, toughness, corrosion resistance, impact-abrasion resistance, and long-term economy.

A514 steel plate

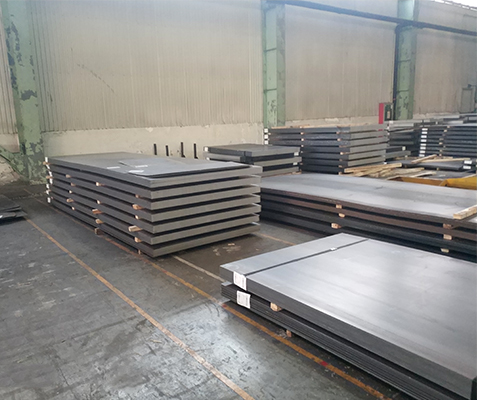

ASTM A514 is most commonly used as structural steel in cranes and large heavy-load machines. Gnee steel stocks ample inventory of A514.
Overview:
Commonly used as structural steel in cranes or large heavy-load machines, A514 offers high strength with weldable, machinable properties.
Also referred to as T-1 steel.
Quenched and tempered for increased strength.
Available in eight grades: B, S, H, Q, E, F, A and P.
Available in heavy plate thicknesses (3-inches or greater).
Suitable in lower temperatures. Charpy impact test results for specific climates available.

Available Sizes
Gnee steel stocks the following standard sizes, but other sizes may be available for special orders.

GRADE	THICKNESS	WIDTH	LENGTH
GRADE B	3/16" – 1 1/4"	48" – 120"	UP TO 480"
GRADE S	3/16" – 2 1/2"	48" – 120"	UP TO 480"
GRADE H	3/16" – 2"	48" – 120"	UP TO 480"
GRADE Q	3/16" – 8"	48" – 120"	UP TO 480"
GRADE E	3/16" – 6"	48" – 120"	UP TO 480"
GRADE F	3/16" – 2 1/2"	48" – 120"	UP TO 480"
GRADE A	INQUIRE	INQUIRE	INQUIRE
GRADE P	INQUIRE	INQUIRE	INQUIRE

MATERIAL PROPERTIES
The following material properties are ASTM specifications and will be confirmed on the Mill Test Report.

GRADE	YIELD POINT (KSI)	TENSILE STRENGTH (KSI)	MIN. 8” ELONGATION %
3/4" OR LESS THICKNESS	100	110-130	18
GREATER THAN 3/4" TO 2.5" THICKNESS	100	110-130	18
GREATER THAN 2.5" TO 6" THICKNESS	90	100-130	16

CHEMICAL COMPOSITION
The following composition properties are ASTM specifications for A514 steel grades.



Grade B
CARBON	0.12-0.21%
MANGANESE	0.70-1.00%
PHOSPHORUS MAX	0.030%
SULFUR MAX	0.030%
SILICON	0.20-0.35%
CHROMIUM	0.40-0.65%
MOLYBDENUM	0.15-0.25%
VANADIUM	0.03-0.08%
TITANIUM	0.01-0.10%
BORON	0.0005-0.005%



Grade S
CARBON	0.11-0.21%
MANGANESE	1.10-1.50%
PHOSPHORUS MAX	0.030%
SULFUR MAX	0.020%
SILICON	0.15-0.45%
MOLYBDENUM	0.10-0.60%
VANADIUM	0.06%
BORON	0.001-0.005%
COLUMBIUM MAX	0.06%



Grade H
CARBON	0.12-0.21%
MANGANESE	0.95-1.30%
PHOSPHORUS MAX	0.030%
SULFUR MAX	0.030%
SILICON	0.20-0.35%
NICKEL	0.30-0.70%
CHROMIUM	0.40-0.65%
MOLYBDENUM	0.20-0.30%
VANADIUM	0.03-0.08%
BORON	0.0005-0.005%



Grade Q
CARBON	0.14-0.21%
MANGANESE	0.95-1.30%
PHOSPHORUS MAX	0.030%
SULFUR MAX	0.030%
SILICON	0.15-0.35%
NICKEL	1.20-1.50%
CHROMIUM	1.00-1.50%
MOLYBDENUM	0.40-0.60%
VANADIUM	0.03-0.08%



Grade E
CARBON	0.12-0.20%
MANGANESE	0.40-0.70%
PHOSPHORUS MAX	0.030%
SULFUR MAX	0.030%
SILICON	0.20-0.40%
CHROMIUM	1.40-20%
MOLYBDENUM	0.40-0.60%
TITANIUM	0.01-0.10%
BORON	0.001-0.005%



CARBON	0.10-0.20%
MANGANESE	0.60-1.00%
PHOSPHORUS MAX	0.030%
SULFUR MAX	0.030%
SILICON	0.15-0.35%
NICKEL	0.70-1.00%
CHROMIUM	0.40-0.65%
MOLYBDENUM	0.40-0.60%
VANADIUM	0.03-0.08%
COPPER	0.15-0.50%
BORON	0.0005-0.006%



Grade A
CARBON	0.15-0.21%
MANGANESE	0.80-1.10%
PHOSPHORUS MAX	0.030%
SULFUR MAX	0.030%
SILICON	0.40-0.80%
CHROMIUM	0.50-0.80%
MOLYBDENUM	0.18-0.28%
ZIRCONIUM	0.05-0.15%
BORON	0.0025% MAX



Grade P
CARBON	0.12-0.21%
MANGANESE	0.95-1.30%
PHOSPHORUS MAX	0.030%
SULFUR MAX	0.030%
SILICON	0.20-0.35%
NICKLE	1.20-1.50%
CHROMIUM	0.85-1.20%
MOLYBDENUM	0.45-0.60%
BORON	0.001-0.005% MAX
