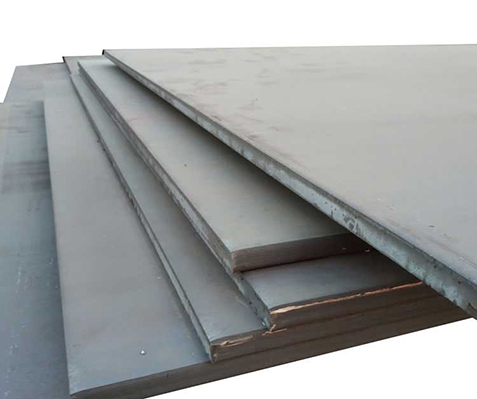

ASTM A515 GR.65 medium and high temperature pressure vessel plate

As the pressure vessel steel plates,ASTM A515 grade 65 steel plate is used to build boilers and pressure vessels such as petroleum, chemical industry, power plants.ASTM A515 standard specification for pressure vessel plates, carbon steel,or intermediate-and higher-temperature service ASTM A515 grade 65 plates shall be normalized.

Thickness: 6MM to 300MM,
Width: 1500mm to 4050mm,
Length: 3000mm to 15000mm

A515 grade 65 Chemical Composition
Grade	The Element Max (%)
	C	Mn	P	S	Si
A515 grade 65	0.28-0.33	0.98	0.035	0.035	0.13-0.45



Grade	A515 grade 65 Mechanical Property
	Thickness	Yield	Tensile	Elongation
A515 grade 65	mm	Min Mpa	Mpa	Min  %
	200	240	450-585	19
	50			23



ASTM Standard:

• A20/A20M: Specification for General Requirements for Steel Plates for pressure Vessels
• A435/A435:  Ultrasonic Examination Specification for Straight-Beam  of Steel Plates
• A577/A577M: For Ultrasonic Angle-Beam Examination of Steel Plates
• A578/A578M: For Straight-Beam Ultrasonic Examination of Rolles Steel Plates for Special Applications

General Requirements and Ordering Information

The plates shall confirm to ASTM A20/A20M.

• Testing and retesting methods, procedures;
• Permissible tolerances in dimensions and mass, quality;
• Repair of defects;
• Marking, loading and ordering information;
• Coils are excluded from this specifcation in case cutted to the plates form.

Material and Manufacture
The steel shall be killed and made to a coarse austenitic grain size practice.

Heat Treatment
ASTM A515 plates thickness in 50 mm [2 inch] thickness and under are normally supplied with as-rolled condition, unless it is ordered as requested.
Plates over 50 mm [2 in] in thickness shall be normalized.
