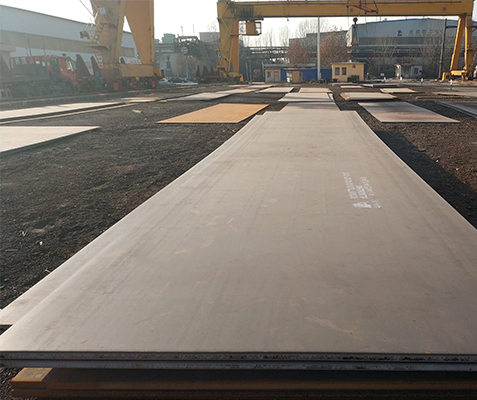

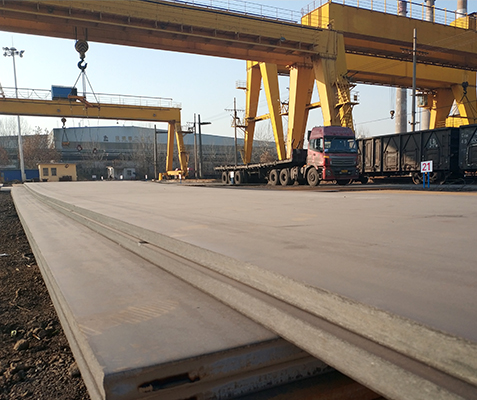

16Mo3 steel

16Mo3 is a low-alloy steel that is used in various industries for high-temperature applications, particularly in the manufacture of boilers and pressure vessels. It is a chrome-molybdenum steel that has good corrosion resistance and high-temperature strength.

The chemical composition of 16Mo3 steel typically includes chromium (Cr), molybdenum (Mo), and manganese (Mn), with trace amounts of silicon (Si) and carbon (C). The addition of chromium and molybdenum to the steel enhances its high-temperature strength and resistance to corrosion, while the manganese improves its weldability and toughness.

16Mo3 steel has a high-temperature yield strength of 220-275 MPa and a tensile strength of 440-590 MPa. It also has good elongation properties, making it suitable for welding and forming. The steel is typically supplied in a normalized condition, which improves its toughness and ductility.

In addition to its use in boilers and pressure vessels, 16Mo3 steel is also used in various other applications, including power generation equipment, heat exchangers, and pipelines. It is a popular choice for applications requiring high-temperature strength, resistance to corrosion, and good weldability, making it a versatile and reliable material for a wide range of industries.

Chemical Properties Of 16Mo3 Steel Plate

Grade	C.max	Mn.	S.	N	Cu	Si.	P.	Cr.	Ni.	Mo.
16Mo3	0.12-0.2	0.40-0.90	0.01	0.012	0.30	0.35	0.025	0.30	0.30	0.25-0.35


Mechanical Properties Of 16Mo3 Steel Plate

Grade	Tensile Strength(Mpa)	Yield Strength(Mpa)	Elongation in100-150 mm(%)	Elongation in16 mm(%)	Max Thickness(mm)
16Mo3	440-590	220-275	19	24	250



16M03EN 10028-2Number:1.5415	Comparision of steel grades
	DIN 17155	15 Mo03
	NFA 36-205	15 D3
	UNI 5869	15 M0 3
	BS 1501	1503 – 243 B
	UNE 36087	16 Mo 3
	ASTM	A 204 Gr. B
	JIS G3115	–
