Home > Products > Steel Pipe > Welded Steel Pipe

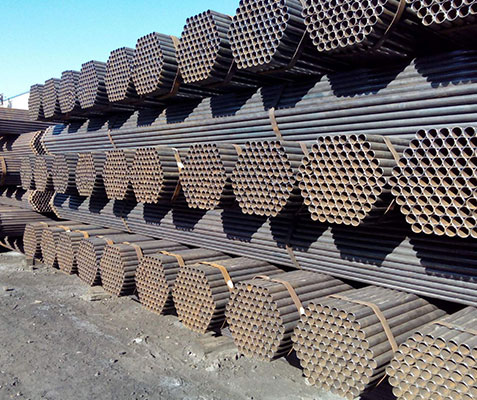

Welded Structural Steel Pipe
Welded Structural Steel Pipe
Welded Structural Steel Pipe
Welded Structural Steel Pipe
Welded Structural Steel Pipe
Welded Structural Steel Pipe

Welded Structural Steel Pipe

structural pipe is welded pipe sized tubing made from flat-rolled steel, formed through a roller system and welded using electric-resistance welding.
Send E-mail
Chat Now
Products list
Gnee steel,steel supply from sky to sea are available,global reachable;
Contact us
Email : sale@gneesteel.com
Mobile: +86 15824687445 kelly
Tel: +86 372-5055135
Address: No. 4-1114,Beichen Building,Beicang Town,Beichen District Tianjin,China.
Product introduction Technical data
Product introduction

Pipe Type: Structural Pipe, Structural Welded Pipe, Welded Structural Pipe
Application: In the Structural Engineering Area and Construction Industry
Specification: OD: 88.9mm ~ 660mm
                       WT: 3mm ~ 17.5mm
                       LENGTH: 0.5mtr ~ 22mtr (5.8/6/11.8/12 meters, SRL, DRL)
Standard & Grades: ASTM A500 Grade 1/2/3, EN 10219
End: Square Ends/Plain Ends (straight cut, saw cut, torch cut), Beveled/Threaded Ends
Surface: Bare, Lightly Oiled, Black/Red/Yellow Painting, Zinc/Anti-corrosive Coating
Packing: Bundled/In Bulk, Plastic Caps plugged, Waterproof Paper wrapped

Technical data
Chemical Composition
Grade C Mn P S Si Cr Mo
1010 0.08-0.13 0.30-0.60 ≤0.04 ≤0.05 - - -
1020 0.08-0.23 0.30-0.60 ≤0.04 ≤0.05 - - -
1045 0.43-0.50 0.60-0.90 ≤0.04 ≤0.05 - - -
4130 0.28-0.33 0.40-0.60 ≤0.04 ≤0.05 0.15-0.35 0.80-1.10 0.15-0.25
4140 0.38-0.43 0.75-1.00 ≤0.04 ≤0.05 0.15-0.35 0.80-1.10 0.15-0.25

Mechanical Properties
Grade Condition Tensile strength Mpa(min) Yield stength Mpa(min) Elongation %(min)
1020 CW 414 483 5
SR 345 448 10
A 193 331 30
N 234 379 22
1025 CW 448 517 5
SR 379 483 8
A 207 365 25
N 248 379 22
4130 SR 586 724 10
A 379 517 30
N 414 621 20
4140 SR 689 855 10
A 414 552 25
N 621 855 20
