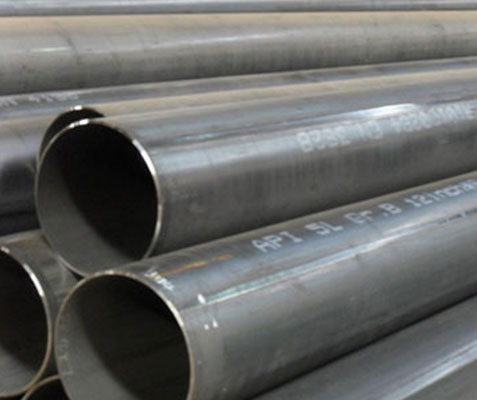

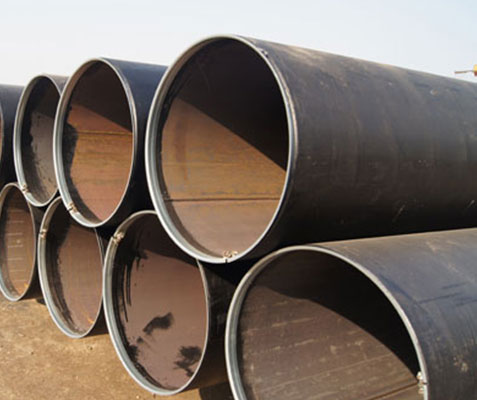

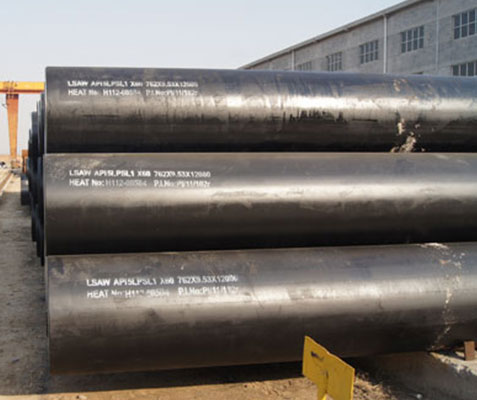

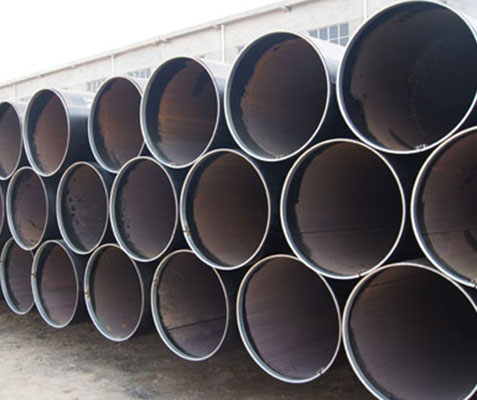

Welded API 5L Line Pipe

Pipe Type: Line Pipe, API Line Pipe, Carbon Steel Line Pipe
Application: For Fluid Transmission in the Oil and Gas Industry
Specification: OD: 219.1mm ~ 610mm
                       WT: 3.25mm ~ 17.5mm
                       LENGTH: 0.5mtr ~ 22mtr (5.8/6/11.8/12 meters, SRL, DRL)
Standard & Grade: API 5L PSL1/PSL2, GR.B/X42/X46/X52/X56/X60/X65/X70
End: Square Ends/Plain Ends (straight cut, saw cut, torch cut), Beveled/Threaded Ends
Surface: Bare, Lightly Oiled, Black/Red/Yellow Painting, Zinc/Anti-corrosion Coating
Packing: Bundled/In Bulk, Plastic Caps Plugged, Waterproof Paper Wrapped

Tolerance of Outside Diameter

Standard	Out Diameter	Tolerance of Pipe End	Tolerance of Pipe Body
API 5L	219.1～273.1	+1.6mm, -0.4mm	±0.75%
	274.0～320	+2.4mm, -0.8mm	±0.75%
	323.9～457	+2.4mm, -0.8mm	±0.75%
	508	+2.4mm, -0.8mm	±0.75%
	559～610	+2.4mm, -0.8mm	±0.75%



Tolerance of Wall Thickness

Standard	Grade	Out Diameter	Wall Thickness
API 5L	A	219.1～457	+15%, -12.5%
	B	508～610	+17.5%, -12.5%
	X42-X80	508～610	+19.5%, -8%

Chemical Analysis & Mechanical Properties

Standard	Class	Grade	Chemical Analysis(%)				Mechanical Properties(min)(Mpa)
			C	Mn	P	S	Tensile Strength	Yield Strength
API 5L	PSL1	B	0.26	1.20	0.030	0.030	414	241
		X42	0.26	1.30	0.030	0.030	414	290
		X46	0.26	1.40	0.030	0.030	434	317
		X52	0.26	1.40	0.030	0.030	455	359
		X56	0.26	1.40	0.030	0.030	490	386
		X60	0.26	1.40	0.030	0.030	517	414
		X65	0.26	1.45	0.030	0.030	531	448
		X70	0.26	1.65	0.030	0.030	565	483
	PSL2	B	0.22	1.20	0.025	0.015	414	241
		X42	0.22	1.30	0.025	0.015	414	290
		X46	0.22	1.40	0.025	0.015	434	317
		X52	0.22	1.40	0.025	0.015	455	359
		X56	0.22	1.40	0.025	0.015	490	386
		X60	0.22	1.40	0.025	0.015	517	414
		X65	0.22	1.45	0.025	0.015	531	448
		X70	0.22	1.65	0.025	0.015	565	483
		X80	0.22	1.85	0.025	0.015	621	552

FAQ
Q: Are you trading company or manufacturer ?
A: We are professional manufacturer for steel pipe/sheet/coil, and our company also is a very professional a trade company for steel products.we can also provide a wide range of steel products.
Q: Will you delivery the goods on time?
A: Yes,we promise to provide best quality products and delivery on time .Honesty is our company's tenet.
Q: Do you provide samples ? is it free or extra ?
A: The sample could can provide for customer with free,but the courier freight will be covered by customer account.
Q: Do you accept the third party inspection?
A: Yes absolutely we accept.
