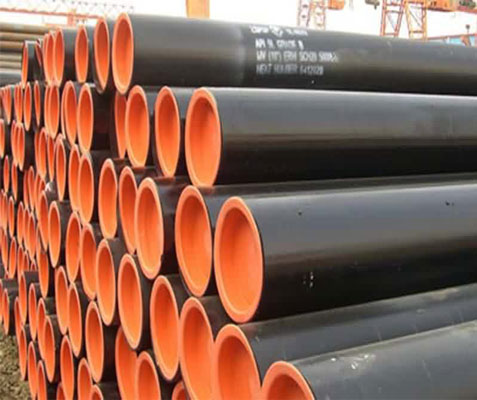

API L X60 Line Pipes

These pipes are made available to the buyers at various specifications to meet all the needs of industrialists at full ease. The pipes are varying differently in types, wall thickness, dimensions, etc. We are too providing the pipes to our buyers at cut-made specifications.

Send E-mail

Chat Now

Products list

Gnee steel,steel supply from sky to sea are available,global reachable;

Steel Pipe

Seamless Steel Pipe Alloy Steel Pipe Carbon Steel Pipe API Line Pipe Welded Steel Pipe Galvanized Steel Pipe Fittings

Stainless Steel

Stainless Steel Coil/Sheet Stainless Steel Pipe Fittings

Steel Plate

Weather Resistant Steel Boiler Pressure Vessel Steel Shipbuilding Steel Plate Wear Resistant Steel Plate Hight Strength Low Alloy Steel Carbon Steel Checkered Steel Plate Alloy Steel Plate

H Beam Angle Channel Steel Round Bars

Galvanized Steel

Galvanized Coil/Sheet Prepainted Steel Coil Corrugated Roofing Sheet

Aluminum Metal

Automotive Steel

Email : sale@gneesteel.com

Mobile: +86 15824687445 kelly

Tel: +86 372-5055135

Address: No. 4-1114,Beichen Building,Beicang Town,Beichen District Tianjin,China.

Introduction Technical Data

Introduction

Features of the Line Pipes

The way we manufacture our ranges of API 5L X60 Line Pipe, it has got many greater attributes in it to offer. The ranges of pipes offered by us are used in many applications only because of the needed qualities possessed by it. Some of them are like-
• Resistance ability to stress corrosion cracking
• High tensile and yielding strength
• Perfect dimensional accuracy
• Smooth surface finish
• General corrosion resistance
• Sturdy construction
• Ability to hold high temperature
• Resistance to pitting, oxidation

Technical Data

Chemical and Mechanical of API 5L X60 Line Pipe

PSL 1
GRADE	Chemical Composition				Mechanical Property
	C (Max)	Mn (Max)	P (Max)	S (Max)	TENSILE ( Min )		YIELD ( Min )
					Psi X 1000	Mpa	Psi X 1000	Mpa
X60	0.26	1.40	0.030	0.030	75	517	60	415

PSL 2

Grade

Chemical Composition

Mechanical Property

C
(Max)

Mn
(Max)

P
(Max)

S
(Max)

Tensile

Yield

C. E. IMPACT ENERGY

Psi x 1000

Mpa

Psi x 1000

Mpa

PCM

IIW

FT/LB

X60

0.22

1.40

0.025

0.015

75 - 110

517 - 758

60 - 82

415 - 565

0.25

0.43

T/L 27/41

T/L 20/30

X60 API 5L Carbon Steel Line Pipes Application Industries

Petrochemical Industry
Chemical Industry
Oil and Gas Industry
Pulp & Paper Indusry
Power Plant Industry
Food Processing Industry
Pharmaceuticals Industry
Energy Industry
Aerospace Industry
