Product Name |

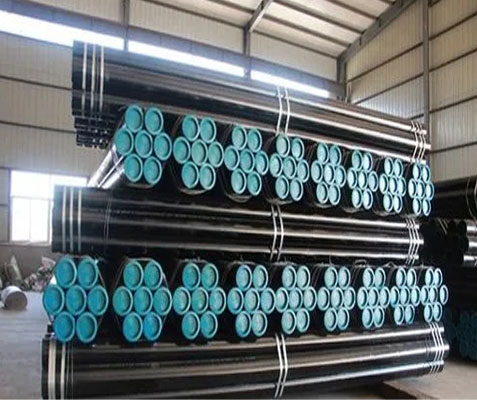

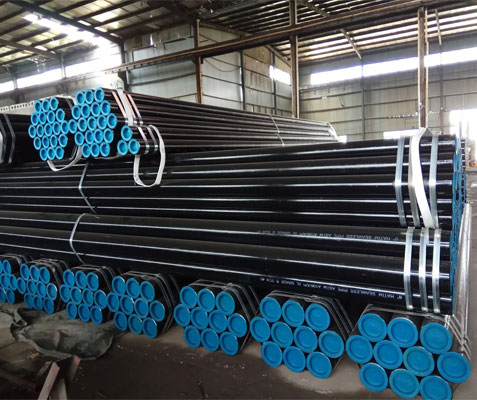

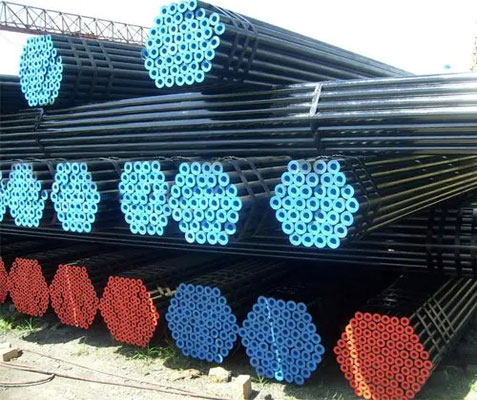

Seamless Oil Pipe |
Material |
GR.B,ST52, ST35, ST45, X42, ST42, X46, X56, X52, X60, X65, X70,SS304, SS316 etc. |
Size |
Size 1/4" to 24" Outside Diameter 13.7 mm to 610 mm |
Standard |
API 5L, ASTM A106 Gr.B, ASTM A53 Gr.B, ANSI A210-1996, ANSI B36.10M-2004, ASTM A1020-2002, ASTM A179-1990, BS 3059-2, DIN 1630, DIN 17175, DIN 2448 |
Wall thickness |
SCH10, SCH20, SCH30, SCH40, SCH60, STD, SCH80, SCH100 XS, SCH120, SCH160, XXS |
Surface Treatment |
Black paint, oil, galvanized, varnish, anti corrosion coatings |
Pipe Ends |
Under 2 inch plain end. 2 inch and above Beveled. Plastic caps (small OD) ,Iron protector (large OD) |
Model in Common Use |
- Single Random Length and double Random Length.
- fixed length(5.8m, 6m, 12m)
- SRL:3M-5.8M DRL:10-11.8M or As clients requested length
|
Application |
Oil pipe, Gas pipe |
Test |
Chemical Component Analysis, Technical Properties, Mechanical Properties, Exterior Size Inspection, hydraulic testing, X-ray Test. |
Advantages |
- Reasonable price with excellent quality
- Rich supply and export experience, sincere service
- Abundant stock and prompt delivery
- Reliable forwarder, 2-hour away from port.
|
Length Range |
R1 (6.10-7.32m), R2 (8.53-9.75m), R3 (11.58-12.80m) |
Model in Common Use |
2-3/8", 2-7/8", 3-1/2", 4", 4-1/2" |
