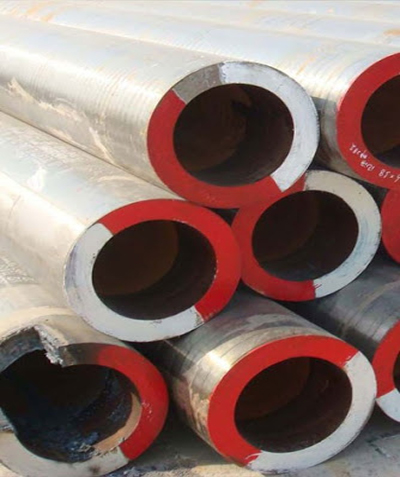

The A335 grade p11 pipe is a seamless ferritic Alloy based stainless Steel Pipe. The pipe is an alloy of Chromium Molybdenum. The presence of these two elements in the SA335 p11 pipe increases its mechanical properties. Apart from these two elements, ASME SA335 grade p11 pipe contains carbon, sulphur, phosphorus, silicon and manganese in trace amounts. For example, the addition of Chromium is known to increase the alloys tensile strength, yield strength, fatigue resistance, wear resistance as well as hardness property. The increase in these properties is ideal to prevent oxidation at high temperature applications.
Grade P11 Pipe Specification
| ASTM A335 P11 Pipe Standards | ASTM A 335, ASME SA 335 |
| ASTM A335 P11 Seamless Pipe Outer Dimensions | 19.05mm – 114.3mm |
| Alloy Steel Grade P11 Pipe Wall Thickness | 2.0mm – 14 mm |
| ASME SA335 P11 Pipe Length | max 16000mm |
| ASTM A335 Gr P11 Pipe Schedule | Schedule 20 - Schedule XXS (heavier on request) up to 250 mm thk. |
| ASTM A335 P11 Material Standard | ASTM A335 P11, SA335 P11 (with IBR Test Certificate) |
| P11 Pipe Material Size | 1/2" NB to 36” NB |
| Alloy Steel P11 ERW Pipe Thickness | 3-12mm |
| ASTM A335 Alloy Steel P11 Seamless Pipe Material Schedules | SCH 40, SCH 80, SCH 160, SCH XS, SCH XXS, All Schedules |
| Esr P11 PipeTolerance | Cold drawn pipe: +/-0.1mmCold rolled pipe: +/-0.05mm |
| P11 Steel Pipe Craft | Cold rolled and Cold drawn |
| A335 P11 Welded Pipe Type | Seamless / ERW / Welded / Fabricated |
| A335 gr P11 Welded Pipe available in Form of | Round, Square, Rectangular, Hydraulic Etc. |
| SA335 P11 pipe Length | Single Random, Double Random & Cut Length. |
| UNS K11597 High Pressure Pipe Material End | Plain End, Beveled End, Treaded |
| Alloy Steel P11 Seamless Pipe Specialized in | Large Diameter SA335 P11 Steel Pipes |
| ASME SA 335 Alloy Steel P11 Chrome Moly Pipes Additional Testing | NACE MR 0175, NACE TM0177, NACE TM0284, HIC TEST, SSC TEST, H2 SERVICE, IBR, etc. |
| SA335 P11 Material Application | Seamless Ferritic Alloy Steel Pipe for High-Temperature Service |
Chemical Composition
| C, % | Mn, % | P, % | S, % | Si, % | Cr, % | Mo, % |
| 0.015 max | 0.30-0.60 | 0.025 max | 0.025 max | 0.50 max | 4.00-6.00 | 0.45-0.65 |
ASTM A335 P11 Properties
| Tensile Strength, MPa | Yield Strength, MPa | Elongation, % |
| 415 min | 205 min | 30 min |
ASTM A335 Gr P11 Equivalent Material
Alloy Steel P11 Pipes Standard: ASTM A335, ASME SA335
Equivalent Standards: EN 10216-2, ASTM A213, ASME SA213, GOST 550-75, NBR 5603
Alloy Steel Material: P11, K11597
Schedule: SCH5, SCH10, SCH10S, SCH20, SCH30, SCH40, SCH40S, STD, SCH80, XS, SCH60, SCH80, SCH120, SCH140, SCH160, XXS
| ASTM | ASME | Equivalent Material | JIS G 3458 | UNS | BS | DIN | ISO | ABS | NK | LRS |
| A335 P11 | SA335 P11 | T11 | STPA 23 | K11597 | 3604 P1 621 | - | - | ABS 11 | KSTPA 23 | - |
