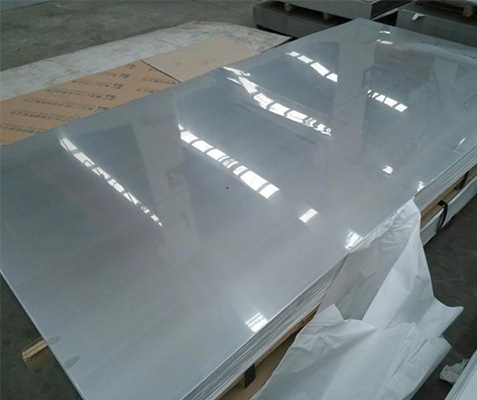

Stainless Steel 321/321H Sheets Plates

Alloy 321 (UNS S32100) is stabilized stainless steel plate which offers as its main advantage an excellent resistance to intergranular corrosion following exposure to temperatures in the chromium carbide precipitation range from 800 to 1500°F (427 to 816°C). Alloy 321 stainless steel plate is stabilized against chromium carbide formation by the addition of titanium.

Alloy 321 stainless steel plate is also advantageous for high temperature service because of its good mechanical properties. Alloy 321 stainless steel plate offers higher creep and stress rupture properties than Alloy 304 and, particularly, Alloy 304L, which might also be considered for exposures where sensitization and intergranular corrosion are concerns.

Range of Stainless Steel Sheet

Material	Size	Thickness	Specification
Stainless Steel Sheet	1000 mm x 2000 mm, 1220 mm x 2440 mm (4′ x 8′), 1250 mm x 2500 mm, 1500 mm x 3000 To 6000 mm, 2000 mm x 4000 To 6000 mm	0.3 mm To 120 mm	A-240



Grade	UNS No	Old British		Euronorm		Swedish SS	Japanese JIS
		BS	En	No	Name
321	S32100	321S31	58B,  58C	1.4541	X6CrNiTi18-10	2337	SUS 321
321H	S32109	321S51	–	1.4878	X6CrNiTi18-10	–	SUS 321H

Type 321 Stainless Steel is covered by the following specifications:AMS 5510, ASTM A240.

Chemical Composition

Element	Type 321
Carbon	0.08 max.
Manganese	2.00 max.
Sulfur	0.030 max.
Phosphorus	0.045 max.
Silicon	0.75 max.
Chromium	17.00 – 19.00
Nickel	9.00 – 12.00
Titanium	5x(C+N) min. – 0.70 max.
Nitrogen	0.10 max.

Mechanical Properties:

Type	Yield Strength 0.2% offset (KSI)	Tensile Strength (KSI)	% Elongation (2" Gauge length)	Hardness Rockwell
321	30 min.	75 min.	40 min.	HRB 95 max.

Formability
Type 321 can be readily formed and drawn, however, higher pressures are required and more springback is encountered than for carbon steel and ferritic stainless steels. Like other austenitic stainless steels,Type 321 work hardens quickly and may require annealing after severe forming.The presence of certain alloying elements can make Type 321 more difficult to form than other austenitic grades such as 301, 304 and 305.

Heat Treatment
Type 321 is non-hardenable by heat treatment.Annealing: Heat to 1750 – 2050 °F (954 – 1121°C), then water quench or air cool.

Weldability
The austenitic class of stainless steels is generally considered to be weldable by the common fusion and resistance techniques. Special consideration is required to avoid weld ”hot cracking” by assuring formation of ferrite in the weld deposit. This particular alloy is generally considered to have comparable weldability to Types 304 and 304L. A major difference is the titanium addition that reduces or prevents carbide precipitation during welding. When a weld filler is needed, either AWS E/ER 347 or E/ER 321 is most often specified.Type 321 is well known in reference literature and more information can be obtained in this way.
