Grade 316 Stainless Steel is the standard molybdenum-bearing grade. The molybdenum gives 316 better overall corrosion resistant properties than Grades 302 and 304, particularly higher resistance to pitting and crevice corrosion in chloride environments. It has excellent forming and welding characteristics. It is readily brake or roll formed into parts for applications in the industrial, architectural, and transportation fields. Grade 316 also has outstanding welding characteristics.
Grade 316L is low carbon version of 316 and is immune from sensitization (grain boundary carbide precipitation) so it can be used in heavy gauge welded components (over about 6mm).
Grade 316H has a higher carbon content and is used at elevated temperatures, as does stabilized grade 316Ti.
Product Details
| Material | Stainless steel |
| Grade | 300 Series |
| Standard | ASTM ; AISI ; DIN ; EN ; GB ; JIS; SUS; etc. |
| Thickness | 0.3-80mm |
| Length | Custom |
| Width | 10-2000mm |
| surface | 8k(mirror),Wire drawing, etc. |
| Supply Ability | 10000 Ton/Tons per Month |
| Packaging & Delivery Packaging Details |
Packaging Details Each piece in polybag and several pieces per bundle,or accoding to customer's request Delivery Time Shipped in 15-25 days after payment |
UNS S31600,
UNS S31603 (316L),
UNS S31609 (316H)
AISI 316, ASTM A-276, ASTM A-240, ASTM A-409, ASTM A-480, ASTM A-666, ASME SA-240, ASME SA-480, ASME SA-666, ASTM A-262.
| Element | Type 316 (%) | Type 316L (%) |
| Carbon | 0.08 max. | 0.03 max. |
| Manganese | 2.00 max. | 2.00 max. |
| Phosphorus | 0.045 max. | 0.045 max. |
| Sulfur | 0.03 max. | 0.03 max. |
| Silicon | 0.75 max. | 0.75 max. |
| Chromium | 16.00-18.00 | 16.00-18.00 |
| Nickel | 10.00-14.00 | 10.00-14.00 |
| Molybdenum | 2.00-3.00 | 2.00-3.00 |
| Nitrogen | 0.10 max. | 0.10 max. |
| Iron | Balance | Balance |
| Surface Finish | Definition | Application |
| 2B | Those finished, after cold rolling, by heat treatment, pickling or other equivalent treatment and lastly by cold rolling to given appropriate luster. | Medical equipment, Food industry, Construction material, Kitchen utensils. |
| BA | Those processed with bright heat treatment after cold rolling. | Kitchen utensils, Electric equipment, Building construction. |
| NO.3 | Those finished by polishing with No.100 to No.120 abrasives specified in JIS R6001. | Kitchen utensils, Building construction. |
| NO.4 | Those finished by polishing with No.150 to No.180 abrasives specified in JIS R6001. | Kitchen utensils, Building construction, Medical equipment. |
| HL | Those finished polishing so as to give continuous polishing streaks by using abrasive of suitable grain size. | Building construction |
| NO.1 | The surface finished by heat treatment and pickling or processes corresponding there to after hot rolling. | Chemical tank, pipe. |
Applications:
Food preparation equipment, laboratory benches and equipment, boat fittings, components for mining, quarrying ad water filtration, chemical containers, heat exchangers, threaded fasteners, springs,

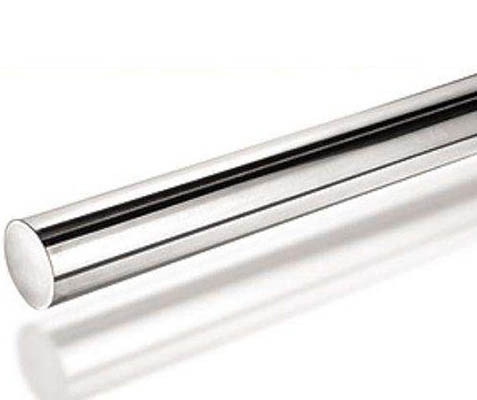

Forms:Bar, rod, plate, sheet, coil, strip, tube, pipe
FAQ
Q:Are you trading company or manufacturer?
A:We are a trading company with more than 15 years experience in steel export business,have the long term cooperation with big mills in China.
Q:Will you delivery the goods on time?
A:Yes,we promise to provide best quality products and delivery on time.Honesty is our company's tenet.
Q:Do you provide samples?is it free or extra?
A:The sample could can provide for customer with free,but the courier freight will be covered by customer account.
Q:Do you accept the third party inspection?
A:Yes absolutely we accept.
Q:What are your main products?
A:Carbon steel,alloy steel,stainless steel plate/coil,pipe and fittings,sections etc.
Q：Can you accept the order of customzied?
A：Yes,we assure.
