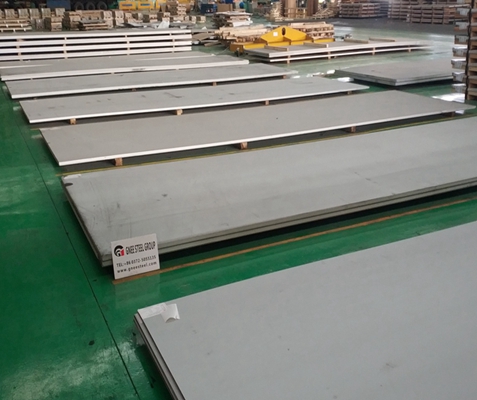

409 stainless steel sheet
409 stainless steel sheet
409 stainless steel sheet
409 stainless steel sheet

409 stainless steel sheet

Alloy 409 is a general purpose, chromium, titanium stabilized, ferritic stainless steel whose primary application is automotive exhaust systems. It contains 11% chromium which is the minimum amount for the formation of the passive surface film which gives stainless steels their corrosion resistance.
Product Information
Alloy 409 is a general purpose, chromium, titanium stabilized, ferritic stainless steel whose primary application is automotive exhaust systems. It contains 11% chromium which is the minimum amount for the formation of the passive surface film which gives stainless steels their corrosion resistance. It combines good elevated temperature corrosion resistance with medium strength, good formability, and overall cost. Alloy 409 resists corrosion strongly compared to carbon steel and is used as an alternative to carbon steel in mildly challenging environments where its high resistance to corrosion and high temperature oxidation gives an advantage. It is commonly used in applications where appearance is a secondary quality to mechanical properties and corrosion resistance.

Name
Stainless steel,409 stainless steel
Certificate
SGS,ISO,BV
Surface
2B,BA(bright annealed) NO.1 NO.2 NO.3 NO.4,8K HL(Hair Line) PVC
Thickness
0.2/0.3/0.4/0.5/0.6/0.7/0.8/0.9/1/2/3/4/5/6/7/8/9mm...
Width
10/20/30/40/50/60/70/80/90/100/200/300/400/500/600/700/800mm..
Length
1/2/3/4/5/6/7/8/9/10
Grade
201/202/303/304/304ji/304L/309s/310s/316/316L/316Ti/409/410/430/904L.etc
Delivery
15-20 days after the deposit or LC.
Payment
T/T, L/C at sight, Western union,Paypal.etc
Sample
Free samples always but freight should be collected at your side.
Feature
Stable quality with reasonable price.
Good shaping capability,weld bending capability,high thermal conductivity,low thermal expansion with our 7x24 after-sales service
Shipment
Three days for samples and 7 days for batch production.


Technical data

Grade Specifications for Stainless Steel 409 Sheets

STANDARD WERKSTOFF NR. UNS JIS
SS 409 1.4512 S40900 SUS 409



Chemical Properties of SS 409 Sheets

ELEMENT C Mn P S Si Cr Ni
SS 409 0.030 max 1.00 max 0.040 max 0.020 max 1.00 10.5 – 11.7 0.50


Mechanical Properties of SS 409 Sheets

Grade/Temper Tensile Strength



ksi (min.)

Yield Strength 0.2%



ksi (min.)

Elongation -% in 50 mm (min.)
SS 409 380 MPa 170 MPa 20.00%

Surface treatment
About surface treatment,it is the most important part.For the cold rolled surface is 2B,Hot rolled regular surface is No.1.Because the process is different and the application industry is different, their surface treatment requirements are also different. For cold-rolled plate, the base surface is 2B. Many customers are in the decoration industry, such as hotel decoration, so they have very high requirements on the surface treatment. Generally they will choose BA, HL, 8K, gold and other colors.

We have our own workshop, we can supply one stop service:
1. Blasting machine.
2. Fiber machine cutting machine.
3. Bending machine. 4. Drill holes machine.
5. Fully automatic paint room.
6. Welded machine.


FAQ

Q:Can you send samples?
A:Of course, we can send samples to all parts of the world, our samples are free, but customers need to bear the courier costs.

Q:What product information do I need to provide?
A:You need to provide the grade, width, thickness, coating and the number of tons you need to purchase.

Q:What are the shipping ports?
A:Under normal circumstances, we ship from Shanghai, Tianjin ports, you can choose other ports according to your needs.

Q:About product prices?
A:Prices vary from period to period due to cyclical changes in the price of raw materials.

Q:What are the certifications for your products?
A:We have ISO 9001, SGS, EWC and other certifications.

Q:How long does your delivery time take?
A:In general, our delivery time is within 30-45 days, and may be delayed if the demand is extremely large or special circumstances occur.

Q:Can I go to your factory to visit?
A:Of course, we welcome customers from all over the world to visit our factory. However, some of the plants are not open to the public.
