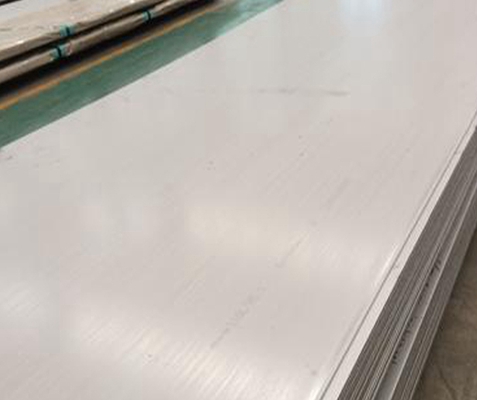

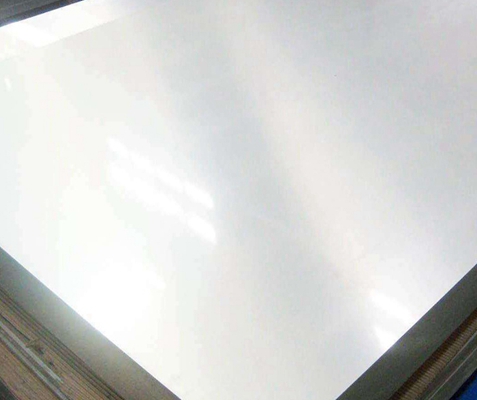

405 stainless steel sheet

Alloy 405 is a 12% chromium stainless steel designed to be used in the as-welded condition. Unlike the other grades of 12% chromium stainless, 405 is not vulnerable to extensive hardening through air cooling from high temperatures.

Send E-mail

Chat Now

Products list

Gnee steel,steel supply from sky to sea are available,global reachable;

Steel Pipe

Seamless Steel Pipe Alloy Steel Pipe Carbon Steel Pipe API Line Pipe Welded Steel Pipe Galvanized Steel Pipe Fittings

Stainless Steel

Stainless Steel Coil/Sheet Stainless Steel Pipe Fittings

Steel Plate

Weather Resistant Steel Boiler Pressure Vessel Steel Shipbuilding Steel Plate Wear Resistant Steel Plate Hight Strength Low Alloy Steel Carbon Steel Checkered Steel Plate Alloy Steel Plate

H Beam Angle Channel Steel Round Bars

Galvanized Steel

Galvanized Coil/Sheet Prepainted Steel Coil Corrugated Roofing Sheet

Aluminum Metal

Automotive Steel

Email : sale@gneesteel.com

Mobile: +86 15824687445 kelly

Tel: +86 372-5055135

Address: No. 4-1114,Beichen Building,Beicang Town,Beichen District Tianjin,China.

Product Information Technical data

Product Information

Specifications	ASTM A240, ASME SA240
Standard	JIS, ASTM, AISI, GB, EN, DIN
Surface	2B, 2D, BA, NO.4, NO.8, 8K, Mirror, Checkered, Embossed, Hair Line, Sand Blast, Brush, Etching
Finish	Cold rolled, Hot rolled
Width	1000-2000mm
Length	1000-6000mm
Thickness	0.40mm – 6.00mm

Technical data

Grade Specifications for Stainless Steel 405 Sheets

STANDARD	WERKSTOFF NR.	UNS	JIS	AFNOR
SS 301	1.4002	S40500	SUS 405	Z4 CA 13

Chemical Properties of SS 405 Sheets

ELEMENT	C	Mn	P	S	Si	Cr	Al	Fe
SS 405	0.080 max	1.00 max	0.040 max	0.030 max	1.00	13.00	0.2	85

Mechanical Properties of SS 405 Sheets

Grade/Temper	Tensile Strength ksi (min.)	Yield Strength 0.2% ksi (min.)	Elongation -% in 50 mm (min.)
SS 405	448 MPa	276 MPa	25.00%

Grade/Temper

Tensile Strength

ksi (min.)

Yield Strength 0.2%

ksi (min.)

Elongation -% in 50 mm (min.)

SS 405

448 MPa

276 MPa

25.00%

S 405 Plate Equivalent grades

JIS G4304	ASTM	UNS	KS	EN10095	AS	CNS
SUS405	405	S40500	STS405	1.4002	405	405

SS 405 Plate Weight Chart

Size (mm)	Weight per plate (Kg)	Size(mm)	Weight per plate (Kg)
4000 x 2000 x 2.0	136.0	3000 x 1500 x 5.0	191.0
4000 x 2000 x 3.0	204.0	4000 x 2000 x 5.0	340.0
2500 x 1250 x 4.0	106.0	2500 x 1250 x 6.0	159.0
3000 x 1500 x 4.0	153.0	3000 x 1500 x 6.0	230.0
4000 x 2000 x 4.0	272.0	4000 x 2000 x 6.0	408.0
2500 x 1250 x 5.0	133.0

ASTM A240 SS 405 Plate Tolerances

Gauge		LB/Sq. Ft.	LB/Sq In.	Gauge Tolerance
Gauge		LB/Sq. Ft.	LB/Sq In.	72″ Wide	96″ Wide
3/16	0.1875	8.579	0.05958	+.045″ -.010″	+.050″ -.010″
7/32	0.2187	9.870	0.06854
1/4	0.2500	11.162	0.07750
5/16	0.3125	13.746	0.09546
3/8	0.3750	16.496	0.11456	+.055″ -.010″	+.060″ -.010″
7/16	0.4375	19.080	0.13250
1/2	0.5000	21.633	0.15044
9/16	0.5625	24.247	0.16838
5/8	0.6250	26.831	0.18633
11/16	0.6875	29.415	0.20427
3/4	0.7500	32.123	0.22308	+.060″ -.010″	+.065″ -.010″
13/16	0.8125	34.707	0.24102
7/8	0.8750	37.291	0.25897
15/16	0.9375	39.875	0.27691
1	1.0000	42.665	0.29628	+.070″ -.010″	+.075 -.010″
1-1/8	1.1250	47.833	0.33217
1-1/4	1.2500	53.001	0.36806
1-3/8	1.3750	58.169	0.40395
1-1/2	1.5000	63.337	0.43984
1-3/4	1.7500	73.672	0.51161
2	2.0000	84.008	0.58339	+.125″ -.010″	+.150″ -.010″
2-1/8	2.1250	89.610	0.62229
2-1/4	2.2500	94.777	0.65817
2-1/2	2.5000	105.113	0.72995
2-3/4	2.7500	115.449	0.80173
3	3.0000	126.301	0.87709	+.150″ -.010″	+.160″ -.010″
3-1/2	3.5000	146.972	1.02064	+.150″ -.010″	+.160″ -.010″
4	4.0000	168.264	1.16850	+.180″ -.010″	+.200″ -.010
