Standard | Type | Size |
ASME B16.9 |

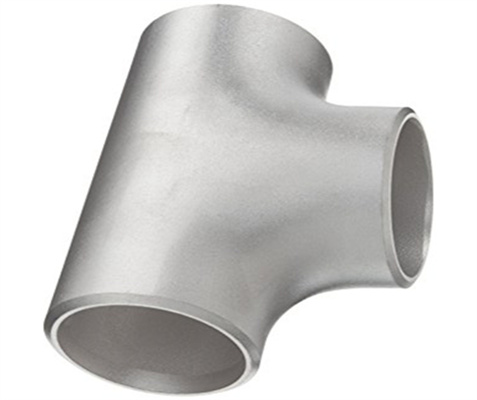

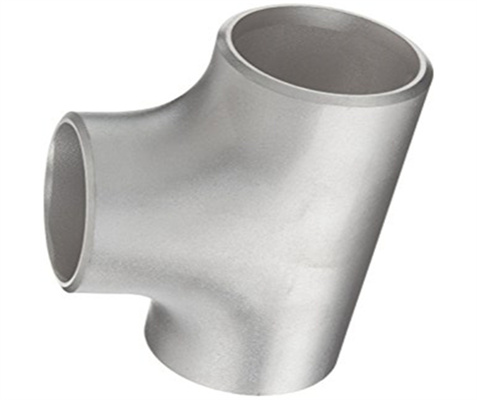

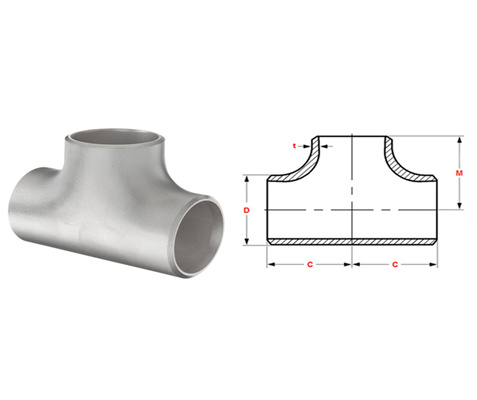

Long Radius Elbows, Long Radius Reducing Elbows, Long Radius Returns, Short Radius Elbows, Short Radius 180° Rerurns, 3D Elbows, Straight Tees, Straight Crosses, Reducing Outlet Tees, Reducing Outlet Crosses, Lap Joint Stub Ends, Caps,Reducers |
Size:1/2"-48" Wall Thickness:SCH5S-SCHXXS |
ASME B16.28 |
Short Radius Elbows, Short Radius 180° Returns |
Size:1/2"-24" Wall Thickness:SCH5S-SCHXXS |
ASME B16.49 |
30° 45° 60° 90° Long Radius Short Radius Bend |
Size:1/8"-12" Wall Thickness:SCH5S-SCHXXS |
MSS-SP43 |
Long Radius Elbows, Straight and Reducing-on-the-Outlet Tees, Lap Joint Stub Ends, Caps, Long Radius 180° Returns, Concentric Reducers, Eccentric Reducers |
Size:1/2"-24" Wall Thickness:SCH5S-SCHXXS |
MSS-SP75 |
Long Radius Elbows, 3R Elbows, Straight Tees, Reducing Outlet Tees,Caps,Reducers |
Size:16"-60" Wall Thickness:SCH5S-SCHXXS |
ISO, DIN, JIS |
All Kind of Buttwelding Products or As Per Client's Drawing |
As the Client's Demand |
Material Standard | Nickel Alloy |
ASTM/ASME SB 366 Alloy 200/UNS N02200, Alloy 800HT/Incoloy 800HT/UNS N08811, Alloy 400/Monel 400/UNS N04400, Alloy 800/Incoloy 800/UNS N08800, Alloy C-2000/UNS N06200, Alloy 925/Incoloy 925/UNS N09925, Alloy C-22/UNS N06022, Alloy 201/UNS N02201, Alloy C-276/Hastelloy C-276/UNS N10276, Alloy 625/UNS N06625, Nimonic 80A/Nickel Alloy 80A/UNS N07080, Alloy K-500/Monel K-500, Alloy 20/UNS N08020, Alloy 800H/Incoloy 800H/UNS N08810 ,Alloy 600/Inconel 600/UNS N06600, Alloy 31/UNS N08031, Alloy 825/Incoloy 825/UNS N08825 |
Carbon Steel | ASTM/ASME SA 234 WPB | |
Low Alloy Steel |
ASTM/ASME SA 234 WP91, WP11, WP22, WP9, |
|
Low Temp Carbon steel | ASTM/ASME SA420 WPL3-WPL 6 | |
Duplex and Super Duplex Steel |
ASTM/ASME SA 815 WPS31803, WPS32205, WPS32750, WPS32760, WPS32550 |
|
Stainless Steel |
ASTM/ASME SA403 WP 304, WP 304L, WP 304H, WP 304LN, WP 304N, ASTM/ASME A403 WP 316, WP 316L, WP 316H, WP 316LN, WP 316N, WP 316Ti, ASTM/ASME A403 WP 321, WP 321H ASTM/ASME A403 WP 347, WP 347H, WP 904L |
|
High Strength Ferritic Steel |
ASTM/ASME SA 860 WPHY 42, WPHY 46, WPHY 52, WPHY 60, WPHY 65, WPHY 70 |
|
Titanium |
ASTM/ASME SB337 Grade 1, Grade 2, Grade 11, Grade 12 |
|
Cu Ni Alloy |
ASTM/ASME SB 466 UNS C70600 Cu/Ni 90/10 |
