Oriented Silicon Steel
Silicon Steel
B23R90
B23R75

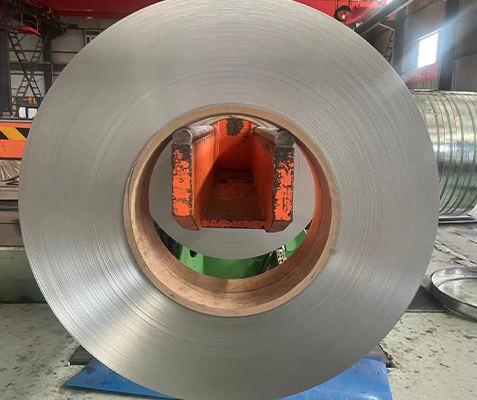

Oriented Silicon Steel

Product Brand: Gnee
Founding Time: 2008
Sold Countries: 60+
Steel Standard: B23R90 B23R85 B23R80 B23R75 B27P90
Thickness: 0.18mm-0.50mm
Width: 20mm-1250mm
Custom Size: Available

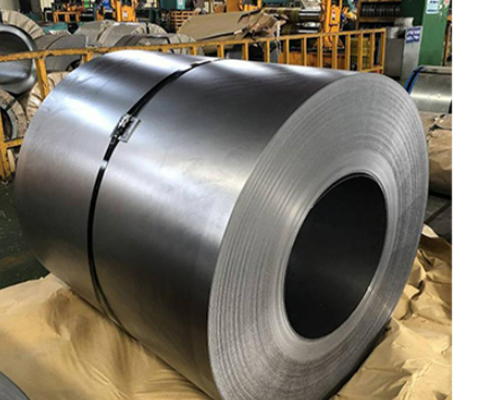

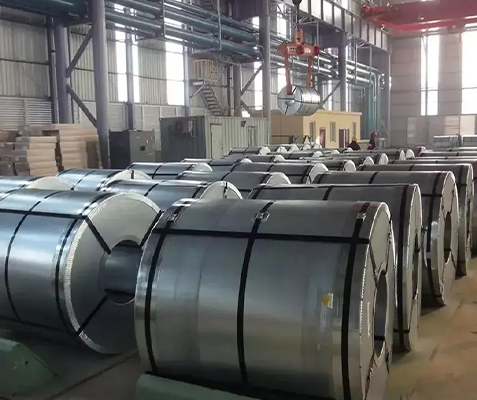

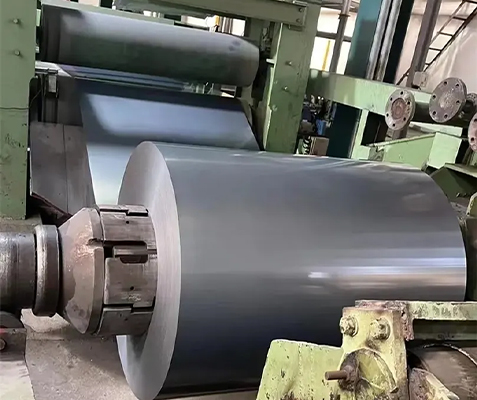

Oriented Silicon Steel
Oriented Silicon Steel, also known as electrical steel or transformer steel, is a specialized type of steel that is designed for use in electrical power equipment, such as transformers and electric motors.  It is characterized by its unique grain orientation, which is achieved through a carefully controlled manufacturing process.

Material Grade Baosteel Grade Density (kg/dm³)
B23R90  Thickness  0.23 mm 7.65
B23R85  Thickness  0.23 mm 7.65
B23R80  Thickness  0.23 mm 7.65
B23R75  Thickness  0.23 mm 7.65
B27P90  Thickness  0.27 mm 7.65
B27P95  Thickness  0.27 mm 7.65
B23P95  Thickness  0.23 mm 7.65
B23P100  Thickness  0.23 mm 7.65

Material Grade Wuhan Iron and Steel Corporation Grade Density (kg/dm³)
23RK90 Thickness : 0.23 mm 7.65
23RK85 Thickness : 0.23 mm 7.65
23RK80 Thickness : 0.23 mm 7.65
23RK75 Thickness : 0.23 mm 7.65
27QG95 Thickness : 0.27 mm 7.65
27QG90 Thickness : 0.27 mm 7.65
27QG100 Thickness : 0.27 mm 7.65
30QG110 Thickness : 0.30 mm 7.65
30QG105 Thickness : 0.30 mm 7.65
30QG100 Thickness : 0.30 mm 7.65

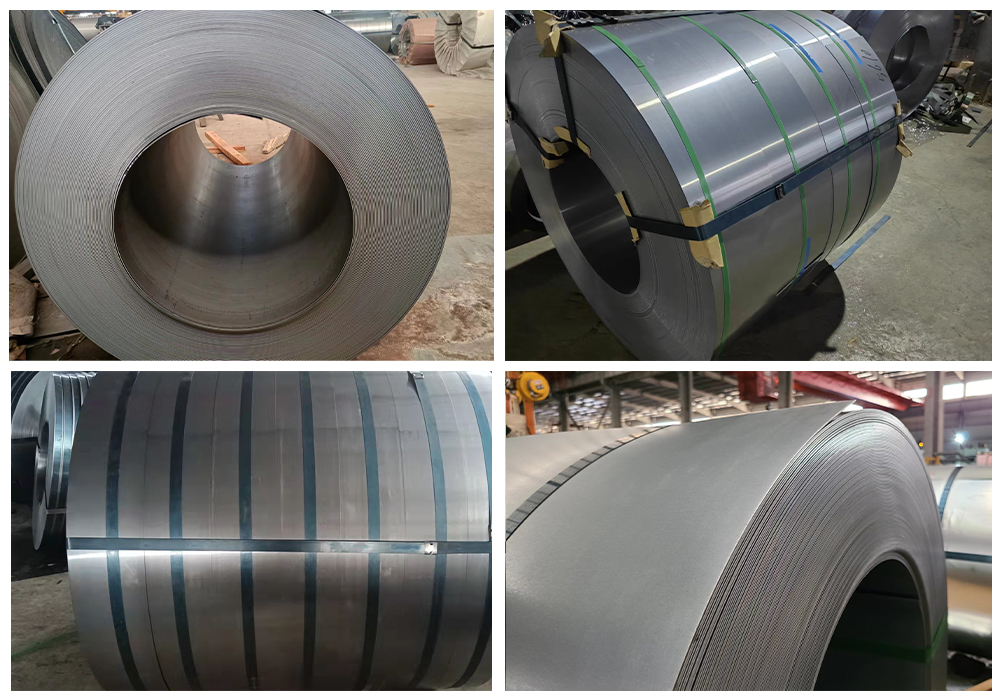

Multi-Grade Oriented Silicon Steel

We also provide oriented silicon steel grade 27Q120,27Q110,27Q100,23Q120,23Q110,23Q100, etc.These grades are subjected to strict control specifications and technical tests, providing reliable quality and excellent performance.  We can also process and cut all kinds of shaped parts according to your needs, and do transportation on behalf of customers with fast delivery time.We support customization, welcome to consult!

Key Features :

High Magnetic Permeability: Oriented Silicon Steel exhibits high magnetic permeability, which means it can efficiently carry and transmit magnetic fields. This property makes it ideal for use in power transformers, where it helps minimize energy losses and improve overall efficiency.
Low Core Loss: This type of steel offers low core loss, meaning it experiences minimal energy dissipation when subjected to alternating magnetic fields. Low core loss is crucial for maintaining high efficiency in electrical devices, as it reduces the amount of energy wasted as heat.
High Saturation Flux Density: Oriented Silicon Steel has a high saturation flux density, which refers to its ability to absorb and store magnetic energy. This characteristic enables it to handle high magnetic field strengths without reaching its magnetic saturation limit.
Excellent Electrical Resistivity: It possesses excellent electrical resistivity, allowing it to resist the flow of electric current and minimize eddy current losses. Eddy current losses can occur when alternating magnetic fields induce currents in conductive materials, resulting in energy losses and heat generation.

Application:

Our advantages

Established in 2008, our company is a large comprehensive steel enterprise that specializes in developing, designing and manufacturing. GNEE's sales network covers all over the world, and can provide customers with timely technical support and after-sales service, and establish long-term stable cooperative relations.

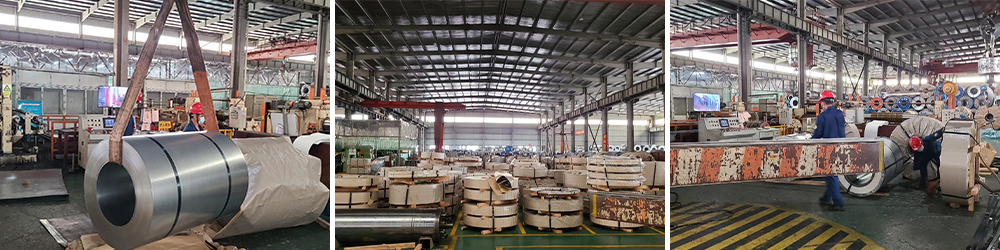

Cooperative Factory:

Certificate:

Why choose us ?

Specialized manufacturing: GNEE specializes in the production of oriented silicon steel and has extensive experience and expertise to provide high quality products.
Advanced production equipment: The company is equipped with advanced production equipment and technology, which can achieve high efficiency and high quality production process to ensure product consistency and stability.
High quality products: GNEE is committed to providing high-quality oriented silicon steel products with good permeability, low magnetic loss and excellent electrical characteristics to meet the requirements of a wide range of applications.
Customization ability: The company has the customization ability to customize different sizes, specifications and magnetic properties of oriented silicon steel products according to the specific needs of customers, providing personalized solutions.
Timely delivery: The company focuses on the delivery time requirements of customers, and adopts efficient production and supply chain management to ensure timely delivery of products to meet the urgent needs of customers.

Business partner:

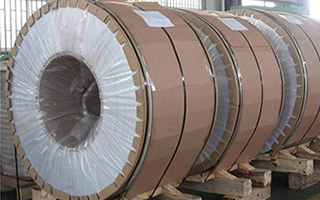

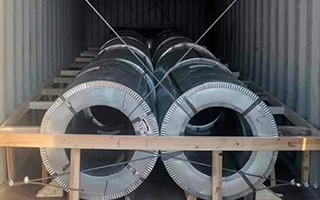

Loading Steel Plates into Containers
