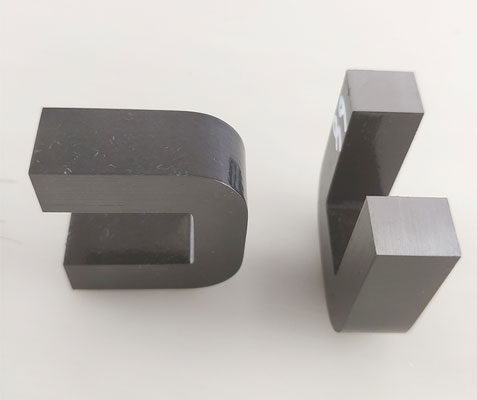

CRGO Silicon Steel Transformer Core

CRGO silicon-steel is widely used for making transformer cores. The magnetizing current required by transformers using CRGO steel is low. If non-oriented steel was used, we would need a certain amount of magnetizing force to establish flux in the core (i.e. to magnetize the core). The magnetizing force should be sufficient to force the domains whose axes are widely divergent from the applied field axis, to come into alignment with (i.e. to be parallel to) axis of the applied field.

With grain oriented sheets the domains are not markedly divergent from alignment and the magnetizing force required to magnetize the core is small. This is why the magnetizing current of transformers using CRGO steel is considerably low.

It is important to bear in mind that when using CRGO steel to build transformer cores care must be taken to assemble the core in such a manner that the crystal direction is parallel to the flux path because otherwise, the core will offer high reluctance (low permeability than high permeability).

The application scenarios of Tianjin Bao Steel Pipe CO.,LTD cores mainly include: signal communication, power drive, traction, renewable energy, charging pile power control, high precision measurement and control measurement, new energy vehicle battery management, power control, welding, new energy vehicle motor control, etc.

Focusing on transformer core development and manufacturing for 10 years, our products still do not forget the original intention, innovation, the pursuit of the best, and the majority of customers to create high-quality cores.Based on credit,Qulity foremost and Expect to cooperate with you faithfully.

MATERIAL	Silicon Steel	PRODUCTS	CRGO Silicon Steel Transformer Core
Property	Cold Rold Grain-Oriented Electrical Steel	Shape	C E O & Customized
Brand	Baosteel	Feature	high permeability, low iron loss ,low noise, no magnetic flux leakage
Thickness	0.05mm, 0.08mm, 0.1mm, 0.23mm, 0.27mm, 0.3mm,  0.35mm...	Application	transformer,sensor and magnetic components of electronic equipment
Density	7.65 kg/dm3	Frequency	50-5K HZ
Certificate	RoHS 2011/65/EU	Technic	tape winding

FAQ
Q. What kind of cores do you have?
A. Tianjin Bao Steel Pipe CO.,LTD is a leading manufacturer in China, which could supply Toroidal cores, Rectangular cores, C- & E- cores, other special tape wound cores and also stacked laminations for distribution transformers in silicon steel, amorphous and nano-crystalline materials.

Q: Are you trading company or manufacturer ?
A: We are factory.

Q:Why I buy Tianjin Bao Steel Pipe CO.,LTD transformer core?
A:After compare quality,delivery and price you will find out answer.

Q:More question......
Feel free to contact you you will get immediately reply..
