SECC PPGI paint coating coil

Description

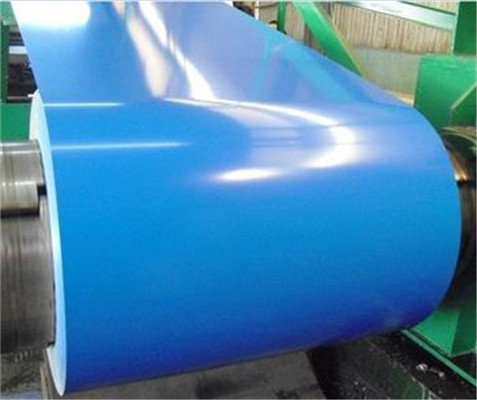

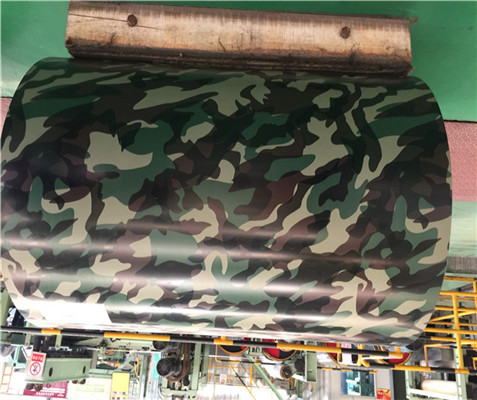

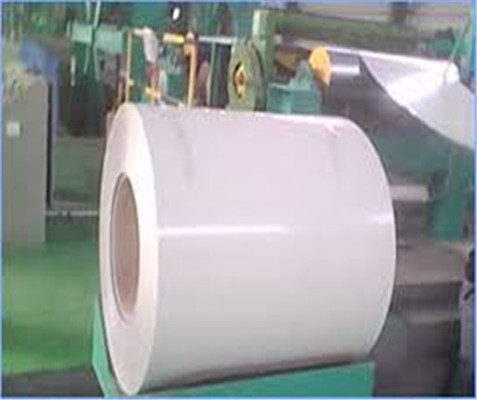

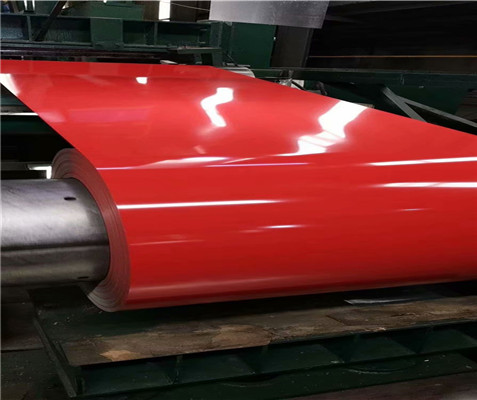

• Product: Prepainted galvanized steel coil(PPGI)
• Resin constructure Technique of production: Double painting and double baking process
• Productivity: 150, 000Tons/year
• Thickness: 0.12-3.0mm
• Width: 600-1250mm
• Coil Weight: 3-8Tons
• Inside Diameter: 508mm Or 610mm
• Outside Diameter: 1000-1500mm
• Zinc Coating: Z50-Z275G
Painting: Top: 15 to 25um (5um + 12-20um)  back: 7 +/- 2um
Standard: JIS G3322 CGLCC ASTM A755 CS-B
• Surface coating type: PE, SMP, HDP, PVDF
• Surface coating color: RAL colors
• Back side coatingcolor: Light grey , white and so on
• Package: export standard package or as per request.


Coating primer	Top paint coating
1) Epoxy primer, good adhesion, water resistance, alkali resistance, chemical corrosion resistance, poor single toughness. 2) Polyester primer, good adhesion, good flexibility, sensitive to humid environment, chemical resistance is not as good as epoxy primer. 3) Acrylic primer, good adhesion, good toughness and high pretreatment requirements. 4) polyurethane primer, chemical resistance, abrasion resistance, durability, toughness	1) Polyester resin, good adhesion, molding and outdoor durability.
	2) Silicon Modified Polyester (SMP)
	3) High weather resistant polyester (HDP)
	4) Polyvinyl fluoride (PVC)
	5) Polyvinylidene fluoride/fluorocarbon (PVDF) It has good formability and color retention, good outdoor durability and powder resistance, solvent resistance, limited color and high price.

FAQ about PPGI / PPGL

What is the advantage of GL compared with other steel?
The alu and zinc alloy coating enables the steel with much better anti corrosion performance with very economic cost rate.

What are the majority usage of the galvanized steel?
Thickness 0.13mm-0.50mm steel is popular for roofing, 0.60-3.0mm steel popular for deforming and decking.

What is the shipping package?
Seaworthy package plus in-container reinforce, eye to wall/eye to sky with wood pallet available for option.
