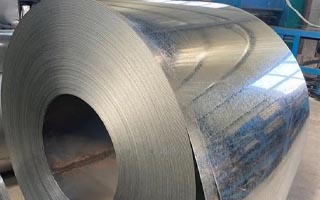

SGCC Galvanized Steel Coil

SGCC is hot-dip galvanized sheet steel. The manufacturing process is to immerse the cleaned iron parts in a zinc bath through the wetting effect of Flux, allowing the steel and molten zinc to react to form an alloyed film, which has the advantages of anti-rust, anti-corrosion and strong weather resistance.


Product Name	Galvanized Steel Coil
Standard	AISI, ASTM, BS, DIN, GB, JIS
Thickness	0.25-2 mm or as your request
Normal Width	1250mm 1500mm 1800mm 2000mm etc.
Length	Customers' Requirement
Technique	Hot dipped,hot rolled
Place of Origin	China
Suface Treatment	Galvanized
Price Terms	Ex-Work,FOB,CFR,CIF,FCA,etc
MOQ	5 Tons
Supply Ability	5000 Tons / Month
Payment Terms	T/T
Delivery Time	Shipped in 7-10 days,according to the specific order

Mechanical properties of galvanized steel:

Usage	Grade	Yield strength(Mpa)	Tensile strength(Mpa)	Elongation rate %
Punching galvanized steel	DC51D+Z	-	270-500	≥20
	DC52D+Z	140-300	270-420	≥22
	DC53D+Z	140-260	270-380	≥26
	DC54D+Z	140-220	270-350	≥30
Structure galvanized steel	S220GD+Z	≥220	≥300	≥18
	S250GD+Z	≥250	≥330	≥17
	S280GD+Z	≥280	≥360	≥16
	S320GD+Z	≥320	≥390	≥15
	S350GD+Z	≥350	≥420	≥14
	S400GD+Z	≥400	≥470	-
	S500GD+Z	≥500	≥530	-
	S550GD+Z	≥550	≥560	-

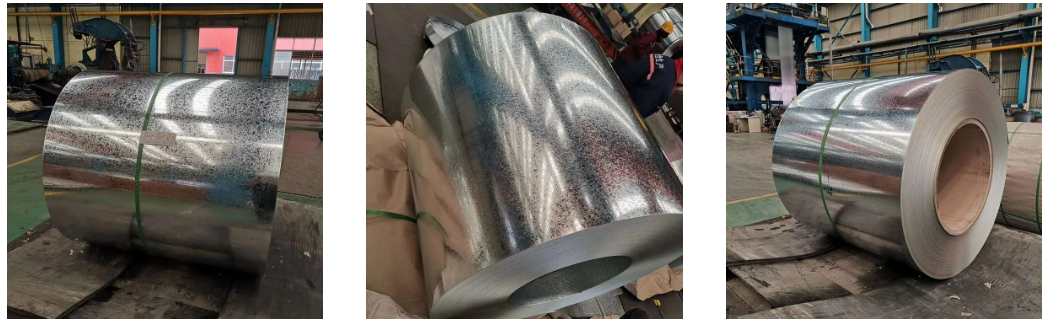

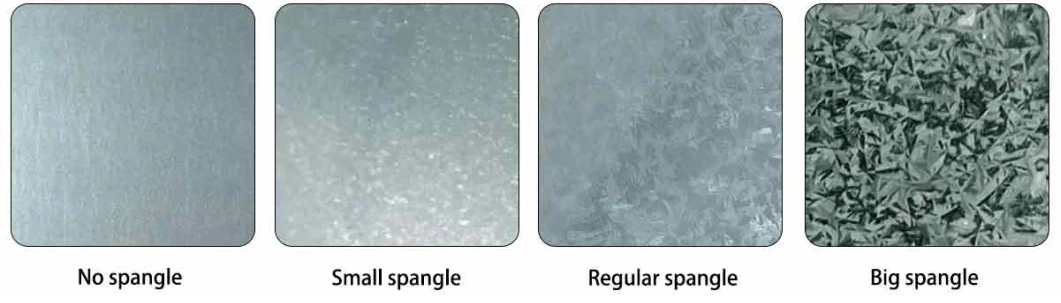

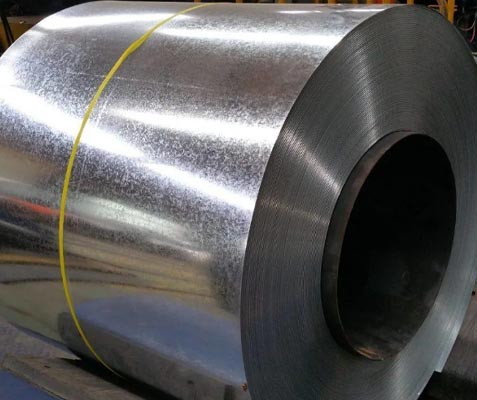

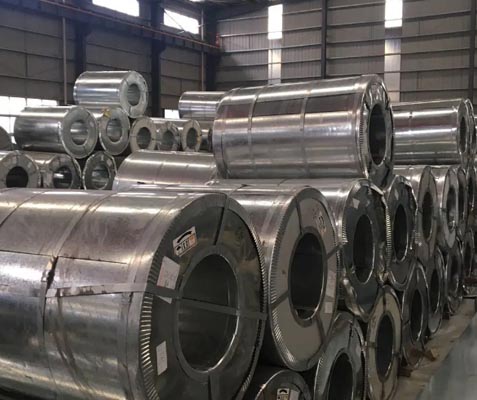

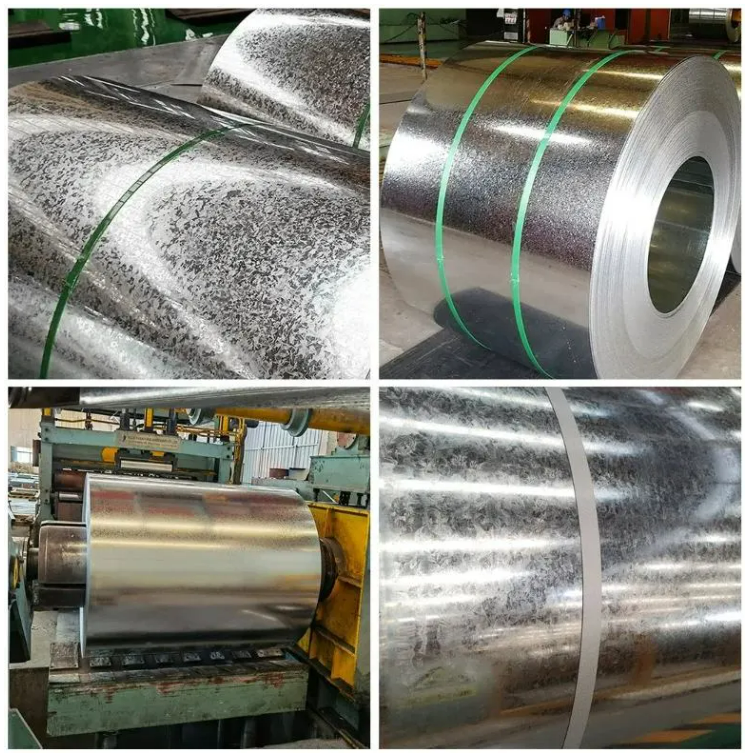

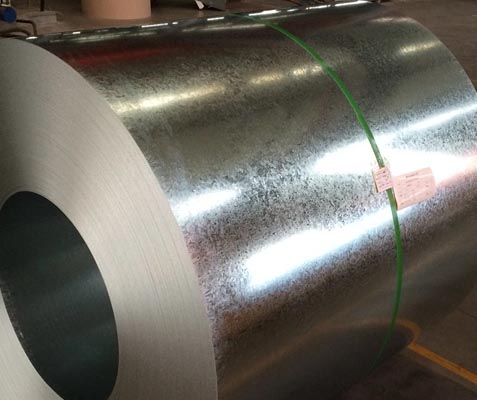

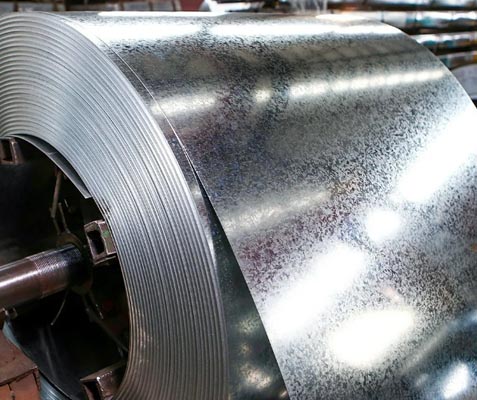

SGCC Galvanized Steel Coil Show:

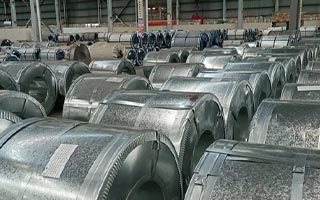

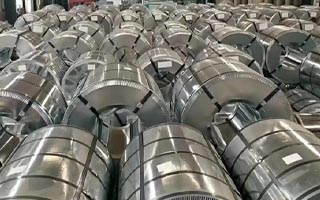

GNEE Factory:


SGCC Galvanized Steel Coil​​​​​​​ Application:

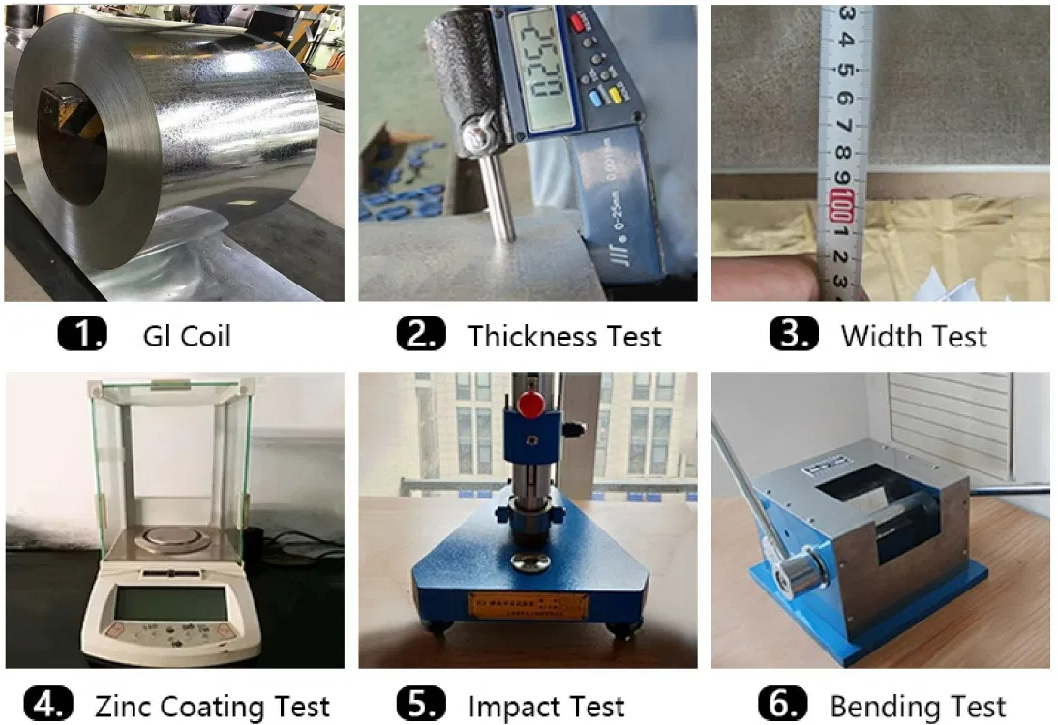

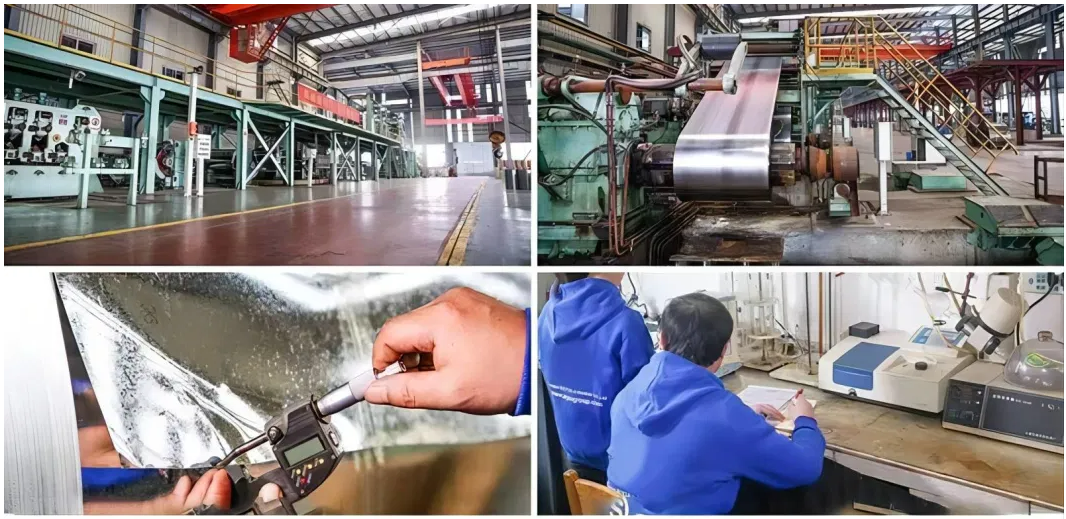

SGCC Galvanized Steel Coil Test:
Our galvanized steel coils have undergone strict quality testing and have complete certificates. We can also conduct quality testing according to your requirements. Welcome to place an order!



GNEE team:
GNEE is located in Henan Province, China. We are the leading galvanized steel supplier supplying steel coils, galvanized steel sheets, galvalume sheets. We have sufficient inventory, so we can guarantee short delivery time. We have a technical team to ensure that the product you inquire about is accurate. Our company sells well in countries in America, Europe, the Middle East and East Africa. Our aim is to operate with integrity, provide enthusiastic service, and have a professional team. Trust us, choose us, we will make you very satisfied and look forward to long-term cooperation with you.



Galvanized steel coil customer case：
