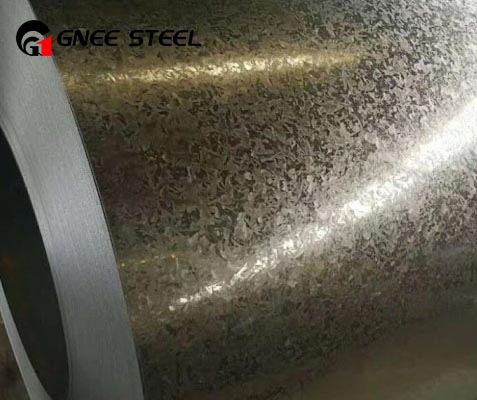

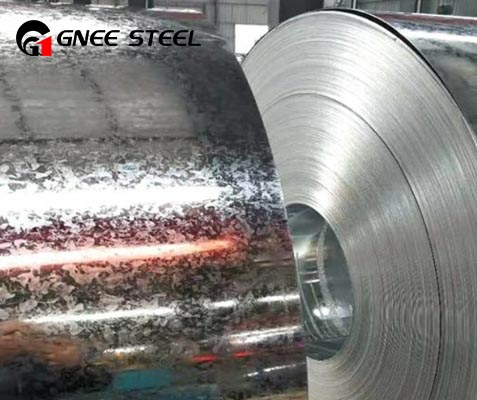

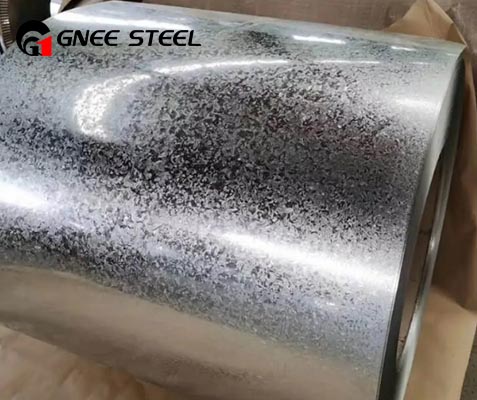

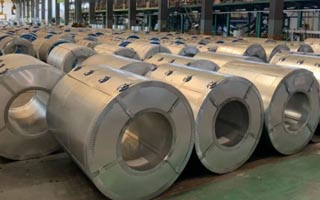

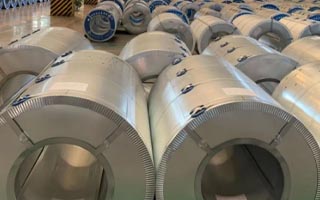

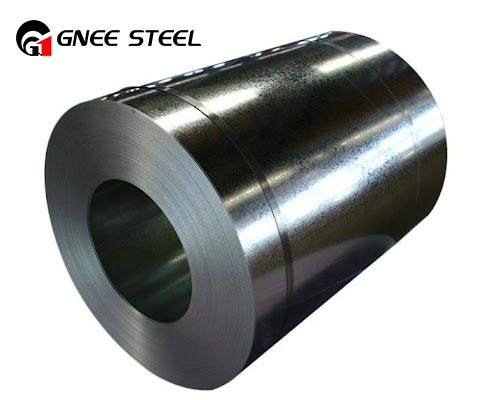

DX51D Z275 Hot Dipped Galvanized Steel Coils

Introduction of galvanized coils:

Galvanized steel coils, the steel sheet is immersed in a molten zinc bath to make a sheet of zinc coated on its surface. It is mainly produced by continuous galvanizing process, that is, the rolled steel plate is continuously immersed in a plating tank with zinc melted to make galvanized steel plate; alloyed galvanized steel plate. This kind of steel plate is also manufactured by hot dip method, but immediately after being out of the tank, it is heated to about 500 ℃ to form an alloy coating of zinc and iron. This galvanized coil has good paint adhesion and weldability.

What is DX51D Z275 equivalent to?

DX51D is a European standard, galvanized with 51 steel coil raw materials, equivalent to SGCC. DX51D+Z275 refers to hot-dip galvanizing.

Product name	Galvanized steel Coil
Galvanized steel Coil	ASTM,EN ,JIS ，GB
Grade	Dx51D, Dx52D, Dx53D, DX54D, S220GD, S250GD, S280GD, S350GD, S350GD, S550GD; SGCC, SGHC, SGCH, SGH340, SGH400, SGH440, SGH490, SGH540, SGCD1, SGCD2, SGCD3, SGC340, SGC340 , SGC490, SGC570; SQ CR22 (230), SQ CR22 (255), SQ CR40 (275), SQ CR50 (340), SQ CR80(550), CQ, FS, DDS, EDDS, SQ CR33 (230), SQ CR37 (255), SQCR40 (275), SQ CR50 (340), SQ CR80 (550); or Customer’s Requirement
Thickness	0.10-2mm can customized accordingly your requirement
Width	600mm-1500mm, according to customer's requirement
Technical	Hot Dipped Galvanized coil
Zinc Coating	30-275g/m2
Surface Treatment	Passivation, Oiling, Lacquer sealing, Phosphating, Untreated

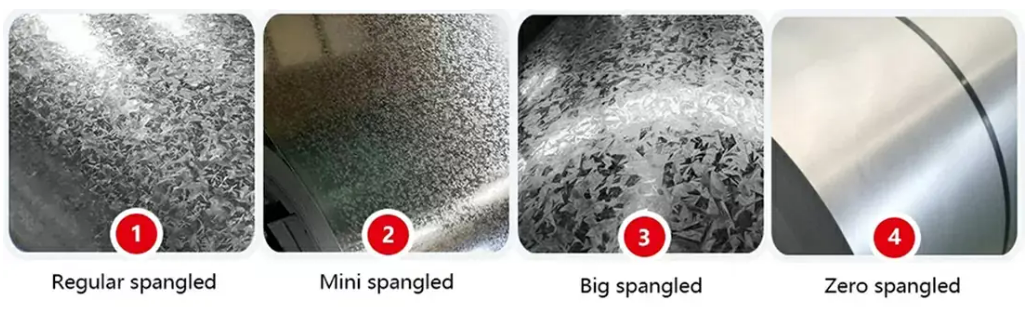

Surface	regular  spangle,misi spangle, bright
Coil Weight	2-15metric ton per coil

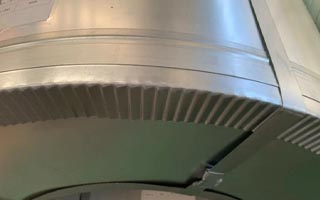

Package	Water proof paper is inner packing,galvanized steel or coated steel sheet is outer packing , side guard plate,then wrapped by   seven steel belt.or according to customer's requirement
Application	structure construction,steel grating, tools

Galvanized steel coils production process:

1.Uncoiler

2.Welder

3.Entry Looper

4.Pre-treatment

5.Annealing Furnace

6.Zinc Pot

7.Cooling Tower

8.Water Quench Tank

9.Skin Pass

10.Tension Leveler

11.Passivation Coater

12.Exit Looper

13.Recoiler

The production and processing of galvanized steel coils can be divided into three steps: first, the entire coil is pickled to remove rust and dirt, so that the surface of the galvanized steel strip can achieve a bright and clean effect; after pickling, pass ammonium chloride or zinc chloride It is cleaned in an aqueous solution or a mixed aqueous solution of ammonium chloride and zinc chloride, and then sent to the hot-dip plating tank for the galvanizing process; after the galvanizing process is completed, it can be put into storage and packaged.

Advantages of galvanized coil:

1. Cost-effective solutions

Compared to GL or color-coated steel coils, galvanized steel coils are the most cost-effective solution but have similar characteristics such as good corrosion resistance, good appearance, etc.

2. Wide range of applications

Galvanized steel coils can be easily processed into different applications. Widely used in construction, home appliances, automobile containers, transportation and other fields.

3. Convenient transportation

Coiled steel is easier to transport than galvanized steel. This way, it will save your shipping costs.

Galvanized coil application:

Galvanized steel products customer cases:
​​​​​​​


GNEE company advantages:
1. Quality guaranteed.
The raw materials of galvanized steel coils come from many well-known domestic and foreign companies such as Baosteel, Wuhan Iron and Steel, and Nippon Steel. We have the highest quality materials. Secondly, our company has a complete quality assurance system to ensure that you get the best products from procurement to delivery.
2. Price concessions. The price of our company's dx51d+z275 product is at the middle level of the industry and is known for its high cost performance. There is still a lot of room for price. We look forward to your needs. We will provide you with the most suitable quotation.
3. On-time delivery and stable cooperation. GNEE has 16 years of trading experience since its establishment in 2008. Good service is a constant requirement and has always been the case. You can be assured of our timely delivery and flexibility to expand supply.
4. The service is trustworthy. We have always been a high-quality supplier of steel in China and have been committed to foreign trade. We sincerely and warmly welcome you to visit us for guidance, improve our shortcomings, learn new technologies, improve product performance, and achieve mutual benefit.
