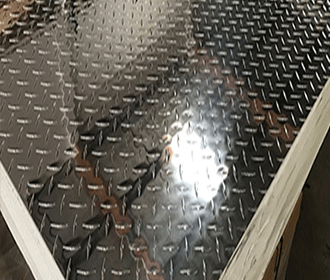

Aluminum Tread Coil/Sheet

Aluminum tread coil/sheet is a type of aluminum sheet that has a raised pattern on its surface, providing additional grip and slip resistance. It is commonly used for flooring, stairs, and other applications where slip resistance is important.


Chemical composition:

• Aluminum (Al): 96.8 - 99.6%
• Silicon (Si): 0.05 - 0.6%
• Iron (Fe): 0.0 - 0.7%
• Copper (Cu): 0.0 - 0.3%
• Zinc (Zn): 0.0 - 0.25%
• Manganese (Mn): 0.0 - 0.3%
• Magnesium (Mg): 0.0 - 0.8%

Mechanical properties:

• Tensile strength: 125 - 185 MPa
• Yield strength: 65 - 120 MPa
• Elongation: 5 - 20%
• Hardness: 40 - 55 HRB (Rockwell B hardness scale)

ALLOY	TEMPER	THICKNESS	WIDTH
1XXX/3XXX/5XXX/8XXX	H12, H14, H16, H18, H22, H24, H26, H32, H34, H36, H38, O etc.	0.2-10MM	100-1500MM

Application
Aluminum tread plates according to the different classification of aluminum sheet alloy

1. The general tread aluminum alloy plate: 1060 aluminum plate for the plate from the processing of aluminum alloy pattern plate, able to adapt to the normal environment, low prices. Usually cold storage, flooring, packaging and more use of this pattern aluminum sheet.

2. Al-Mn alloy tread plate: 3003 as the main raw material processing, the aluminum plate, also known as rust-proof aluminum, the strength is slightly higher than the ordinary aluminum alloy pattern plate, with a certain anti-rust properties, but the hardness and corrosion resistance Less than 5,000 series of pattern plate, so the product is not strictly used in the anti-rust, such as truck models, cold storage floor.

3. Aluminum-magnesium alloy tread plate: 5052 or 5083, such as 5000 series of aluminum as raw material processing, with good corrosion resistance, hardness, anti-rust performance. Usually used in special places, such as ships, cars lights, humid environment, the high hardness of aluminum, a certain load-bearing capacity.

In accordance with the different patterns of aluminum plate classification: pattern plate has a bar, two bars, three bars and five bars.
