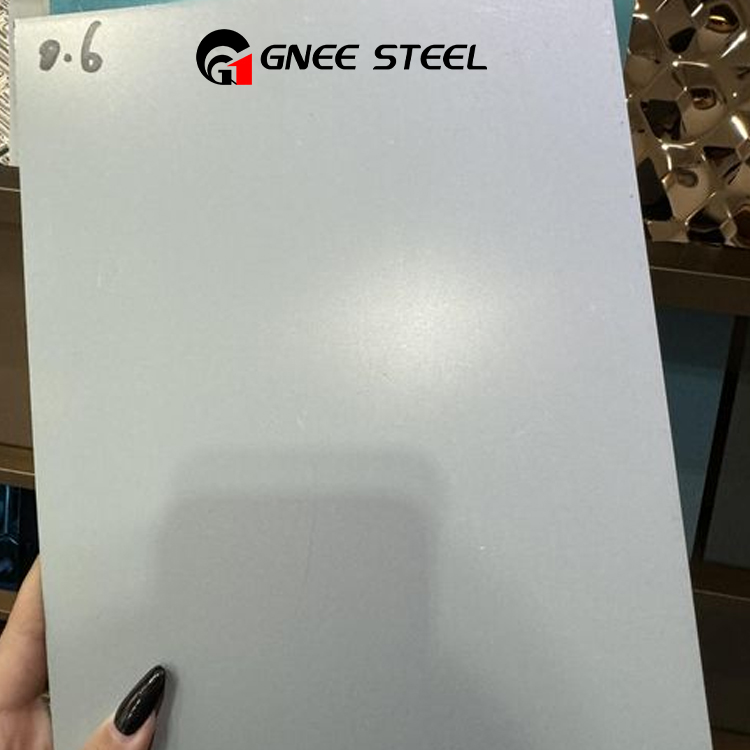

DC01+ZE
DC01+ZE is electrolytically galvanized cold-rolled steel plate for cold forming.
Properties according to DIN EN 10 152
Steel type
| Short designation |
VDA239-100 |
Surface finish |
Material number |
| DC01 |
CR1 |
+ZE |
1.0330 |
DC01+ZE | 1.0330: Mechanical properties (transverse)
| Yield strength R1) MPa e max. |
Tensile strength Rm MPa |
Elongation at fracture2) % A80 |
Anisotropy r903)4) min. |
Strain hardening exponent n903) min. |
| 280 |
270–410 |
28 |
- |
- |
DC01+ZE | 1.0330: Chemical composition (heat analysis)
| Percentage by weight % max. |
|
|
|
|
| C |
P |
S |
Mn |
Ti |
| 0.12 |
0.045 |
0.0 |
0.60 |
- |
Steel sheet Form: coated sheet Material: DC01 (1.0330)
Manufacturing method: cold-rolled
State: passivated, phosphated
Surface quality: galvanized
Norm: DIN EN 10152/10131 e
Class 9.1: 35010501
UNSPSC 11.2: 30102504
Dimensions: Gauge (mm): 0,75 - 2,99 Length (mm): 2.000 - 3.000
Width (mm): 1.000 - 1.500
Ordering example:
The strip grade is DC3+ZE (1.0347+ZE), the galvanizing thickness on the surface (50/50) is 5μm, the surface quality is Class A, and the surface is phosphated. Examples are: Strip EN 10152—+ZE50 DC3/50-A-P Or strip EN 10152— 1.0347+ZE50/50-A-P
